Magnetospheres of Terrestrial Exoplanets and Exomoons: Implications for Habitability and Detection

Habitable terrestrial planets are those occupying orbits around a star that can maintain surface liquid water under a supporting atmosphere (Kasting et al. 1993). The study of the evolution of planetary atmospheres has been an important research topic for the last several years in an effort to determine the most important factors in creating a habitable environment for an exoplanet. A planet found in the habitable zone (HZ) around a star does not necessarily mean that the planet is habitable since stellar activity cannot be neglected (e.g., Dong et al. 2017, 2018a). For example, it is well known that stellar emission in the X-ray and extreme ultraviolet (EUV) leads to enhanced ionization and inflation of planetary ionospheres and atmospheres leading to atmospheric loss (e.g., Airapetian et al. 2017). Magnetically active stars produce very intense stellar flares that are often, but not always, accompanied by a coronal mass ejection (CME) and stellar winds leading to more atmospheric loss as observed at Mars (e.g., Jakosky et al. 2015; Luhmann et al. 2017). When the Martian dynamo shut down ∼4.1 Ga and Mars lost its global magnetosphere (Lillis et al. 2013), the intense solar wind and radiation ravished its atmosphere resulting in ocean evaporation and atmospheric loss transforming Mars from an early warmer and wetter world to a cold and dry planet with an average surface pressure of only 6 mbar (Jakosky et al. 2018; Dong et al. 2018b). Simply stated, preservation of an atmosphere is one of the chief ingredients for surface habitability.

It has been shown that young stars, particularly one solar mass and smaller, produce extremes such as stellar flares and CMEs that lead to planetary atmospheric loss and that these extremes are closely related to the stellar rotation rate in addition to mass. Johnstone et al. (2015) found that almost all solar mass stars have converged to slow rotators by 500 Myr after formation producing slower stellar wind. Compared with solar-type stars, it takes a longer time for M-type stars (with lower masses) to slow down. M-type stars also keep magnetically active for a longer period of time. Therefore, the ravaging of planetary atmospheres in the young solar system due to extreme solar radiation and particle fluxes is believed to be a significant factor for our understanding of how an exoplanet will develop and maintain an atmosphere, which is a critical element of a habitable environment. Meanwhile, recent studies show that planetary magnetic fields may protect planets from atmospheric losses (Owen & Adams 2014; Gallet et al. 2017; Egan et al. 2019; Dong et al. 2020), indicating planetary magnetic fields play an important role in planetary habitability.

Another factor that should be considered with respect to the habitability of a terrestrial exoplanet, unrecognized until this paper, concerns the magnetic characteristics of an associated exomoon. With the existence of exoplanets well established, one of the next frontiers is the discovery of exomoons. Despite the fact that all reported identification of exomoon candidates are still controversial, efforts have been made to search for exomoons and understand their formation during the past years (e.g., Teachey & Kipping 2018; Moraes & Vieira Neto 2020). Since it is without a doubt that they must exist around some exoplanets, it is important to examine what role, if any, they would have in creating an environment that contributes to the habitability of their host planet.

Although speculated for several decades, only recently have scientists determined that our Moon had an extensive magnetosphere for several hundred million years soon after it was formed (Mighani et al. 2020). Recently, Green et al. (2020) investigated the expected magnetic topology of the early Earth–Moon magnetospheres and found that they would couple in such a way as to protect the atmosphere of both the Earth and Moon. Assuming similar formation processes for terrestrial planets and their moons, how these two magnetospheres would interact and what protection such a combined magnetosphere would afford to the atmospheres of early exoplanets and their moons orbiting young stars is the subject of this paper.

The formation of exomoons should naturally be based on an understanding of how moons in our own solar system must have formed. The prevailing model for the generation of our Moon is the giant impact hypothesis in which a differentiated Mars sized protoplanet impacted the proto-Earth during the early formation of the solar system (Canup & Asphaug 2001). It is expected that extensive damage was done to the proto-Earth even to the point of eliminating its primordial atmosphere (Cameron & Benz 1991). The resulting debris formed the Earth and the Moon, ending with the Moon lying just outside the Roche limit of ∼2.9 Earth radii (R_E). Soon after formation, internal dynamos were being generated in both the Earth and the Moon (Green et al. 2020). Once formed, the Moon slowly moved away from the Earth due to the dissipation of tidal energy to its present position of 60 R_E.

It is believed that early magnetospheric protection is critical for the outgassing Earth to build back its secondary atmosphere and maintain it throughout periods of intense solar radiation and particle fluxes emanating from our young Sun. Intrinsic magnetic fields are generated by large dynamos carrying electric currents via convection inside planetary bodies (Stevenson 2003). Molten cores within spinning planets are subject to Coriolis forces and are an important element in maintaining core convection. The physical system behind the source electric currents generated inside our Moon producing its magnetosphere are still under debate (Tikoo et al. 2017; Mighani et al. 2020) but the Apollo lunar surface samples show its magnitude and duration. Magnetospheres in the solar system can be quite complex with multiple magnetic moments such as Uranus (Jarmak et al. 2020). It is not known what the lunar magnetosphere looked like but even a simple electric current system generates a dipole-like field.

In the above scenario of planet–moon formation it is expected that both objects upon initial accretion would be fast rotators and tidal forces would come into play while each body is still undergoing differentiation. It is only over time that the planet's moon becomes tidally locked. Those planetary bodies that are able to maintain a dynamo will generate a magnetosphere.

Planets are subjected to a continuous plasma outflow from the host stars. The boundary region between this stellar outflow or wind and a planetary magnetosphere contains an electrical current layer known as the magnetopause. The dynamic pressure of the stellar wind is balanced by the static pressure of the planet's magnetic field at the magnetopause. For strong magnetospheres, this standoff distance to the magnetopause must be several planetary radii. Weak intrinsic magnetic fields, those in which the resulting magnetopause would be located below an induced magnetosphere boundary, would actually enhance atmospheric escape (Egan et al. 2019). These conditions typically occur when the magnetopause is within one radius of the planetary body in a stellar wind. In this study we consider only strongly magnetized exoplanets producing significant shielding similar in nature to the Earth and our own Moon as in Green et al. (2020). The location of the Earth's magnetopause is typically at 10 R_E, which has been compressed by the solar wind such that the total magnetic field strength (B) at the subsolar point is about 2.5 times as large as the field would have been without the solar wind. This increase in the magnetic field at the magnetopause is due to a current that arises to cancel the planet's magnetic field outside the magnetopause. The result is that the magnetopause produces a magnetic cavity that can protect the planet from direct stellar wind interactions.

The plasma outflow from a host star typically contains a stellar magnetic field. Under the conditions where the direction of the magnetic field in the stellar wind and the direction of the planet's magnetic field at the magnetopause are opposite, a dynamic process called magnetic reconnection occurs in which the location and topology of the magnetopause changes quickly by erosion of the magnetopause location moving the magnetopause inward until a new equilibrium is established. For this first-order analysis, the typical interior magnetospheric currents, such as the ring current and Chapman currents, will be ignored and we will concentrate on stellar winds interacting with the exoplanet–exomoon coupled magnetospheres working together as a single but complex structure contained by a magnetopause providing protection from atmospheric erosion.

Using the technique developed by Green et al. (2020), we present simplified dipole magnetic field topological modeling confined within a paraboloidal shaped magnetopause to show, qualitatively, how the exoplanet–exomoon magnetospheres are coupled together as the exomoon moves outward over time in a stellar wind environment of a host star. As illustrative of the resulting topology (Figure 1), the early dipole moments of the Earth–Moon system will be used assuming that the internal dynamos become operational soon after the formation of the exoplanet and exomoon. The magnetic fields of the exoplanet and the exomoon are approximated by dipoles with the Earth–Moon magnetic moments directed in the normal (Z) direction of the ecliptic plane of −3 × 10⁴ nT R_p ³ and ±1 × 10³ nT R_p ³, respectively (where R_p is the exoplanet radii). This is a reasonable first-order approach since, in our solar system, many planets generate magnetospheres that are dipolar in nature due to the fact that a current inside a planet will typically produce the most power into its fundamental frequency (manifesting into a magnetic dipole configuration) and much less power in the higher harmonics. The Earth's magnetic field roughly aligns with its spin axis but also periodically flips orientation. Therefore, the modeled magnetic topology of the exoplanet and exomoon will take into account the expected extremes of both, dipole aligned and antialigned configurations.

Zoom In Zoom Out Reset image size

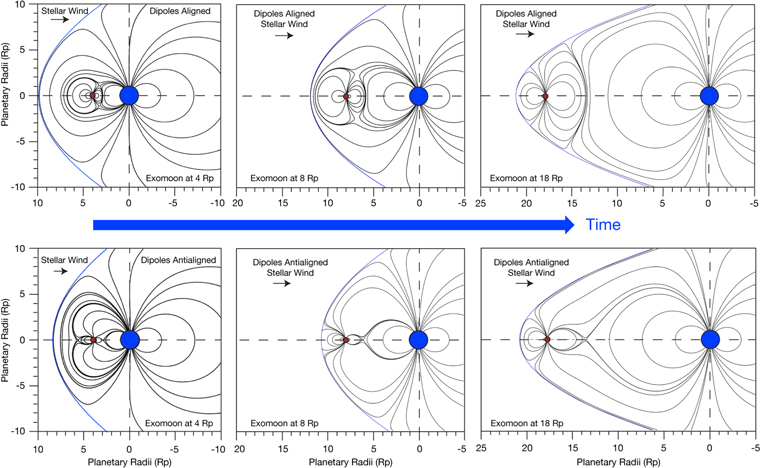

Figure 1 shows the results of the evolution of the magnetic topology of an exoplanet–exomoon over a period of time delineated by the exomoon moving away from the exoplanet which is expected to occur over hundreds of millions of years. The corresponding top and bottom panels have the exomoon at the same locations (4, 8, and 18 R_p), respectively, and orientation (exomoon at the substellar point) and under the two conditions of their dipoles aligned (top panels) and dipoles antialigned (bottom panels). The horizontal axis establishes the star–planet/moon direction with the vertical axis lying perpendicular to the orbital plane. The starting location of the exomoon at 4 R_p is taken to be outside the Roche limit. In all these configurations, the coupled magnetospheres provide a significant buffer from intense stellar winds, reducing atmospheric loss to space and improving the chances of creating a habitable exoplanet. This scenario may be significant when considering terrestrial exoplanets with exomoons orbiting M-type stars given the extreme stellar environment in their close-in HZs.

The case of dipole aligned topology (top panels of Figure 1) depicts how the exomoon's magnetosphere coupling evolves over time. At 4 R_p and 8 R_p configurations the exomoon magnetosphere lies within the exoplanet magnetosphere. When comparing the exomoon located at 8 R_p and 18 R_p, the key difference between these two panels illustrates how the exomoon emerges from the exoplanet's magnetosphere with the upper right panel showing no exoplanet field lines configured to drape over the exomoon dayside. In contrast, dipoles antialigned (bottom panels of Figure 1) show that the reconnected field lines in the polar regions of the exomoon and exoplanet are still maintained with strong coupling between these magnetospheres. Significant reconnection occurs, producing an environment in which the exomoon and exoplanet have many pole-to-pole magnetic field lines allowing exchange of atmospheric material originating in their ionospheres and atmospheres. It is also important to note that when the dipoles are aligned the magnetopause is extended by about 2 R_p compared with the antialigned cases. Figure 1 illustrates an extremely important feature of the exomoon magnetosphere and its relationship to the exoplanet magnetopause. It is clear that an extended magnetopause arises forcing stellar wind interactions to take into account the exomoon's magnetic field.

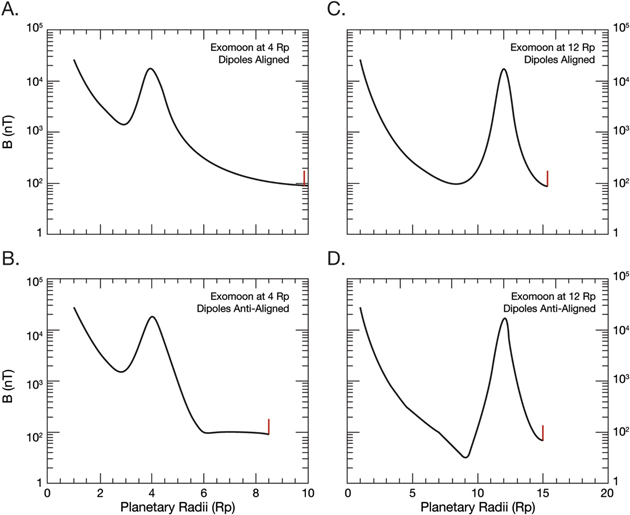

To better quantify this interaction, Figure 2 shows the intensity of the coupled magnetic field from the exoplanet's surface, near the pole, to beyond the magnetopause along the planet–star line. Panels A and B are with the exomoon at 4 R_p and panels C and D are at 12 R_p for the cases of dipole aligned (A and C) and antialigned (B and D). The 12 R_p location for the exomoon was selected to be just outside the exoplanet's magnetosphere when the exomoon has no magnetic field showing the maximum effect of the combined fields. The rapid enhancement (shown in red) at the end of the traces for all panels of Figure 2 indicates the model calculated magnetopause locations with the expected magnetic field contribution from a magnetopause current. As illustrated in Figure 2, the magnetospheres of the exoplanet and exomoon, in these configurations do provide a substantial barrier to the stellar wind. The extended magnetopause configuration in panel A compared to panel B is a result of the exoplanet's magnetosphere rapping around the exomoon. No difference in the magnetopause location is seen in panel C or D, since it is due solely to the exomoon, but a clear magnetic intensity drop occurs in the antialigned case (panel D) due to reconnection of field lines between the magnetospheres.

Zoom In Zoom Out Reset image size

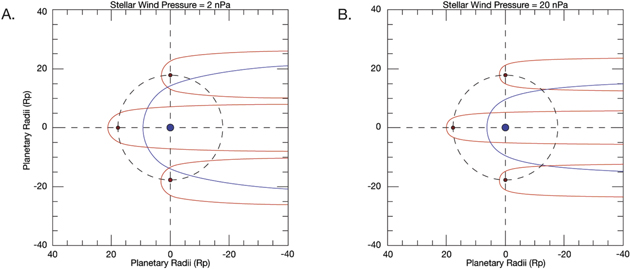

In order to qualitatively investigate other local time configurations under varying stellar wind conditions, Figure 3 provides an orbit plane projection (X–Y plane) of the exomoon (red curve) orbiting at 18 R_p and exoplanet (blue curve) magnetopauses, which are calculated independent of each other (coupling not modeled). Figure 3(A) is for a stellar wind of 2 nPa (an average solar wind pressure at 1 au) and in panel B of 20 nPa (extreme conditions) an order of magnitude above the average. Plotting the resulting magnetopauses as if uncoupled (alone in the stellar wind) clearly shows the locations of the coupling zones in each of the configurations. Higher stellar wind pressure produces magnetospheres reduced in size. However, even with the exomoon orbiting at 18 R_p the magnetospheres must still couple in significant ways in the regions where the blue and red curves overlap. A full magnetohydrodynamic model would be necessary to fully examine the details of how these magnetospheres would couple, which is beyond the scope of this analysis.

Zoom In Zoom Out Reset image size

Characterizing Earth-sized habitable exomoons has already been considered (Kaltenegger 2010). It is expected that in extrasolar systems with Jovian-type planets their moons would probably be embedded within the giant planet's magnetosphere and therefore protected from stellar wind extremes (Heller & Zuluaga 2013), but what about terrestrial planets that form moons in the terrestrial domain much closer to the host star?

The search for exomoons is just beginning with a number of techniques being implemented (Kipping 2011b). The discovery of exomoons around terrestrial exoplanets will help determine if they are rare or common providing an understanding of how special our own Moon may be. Ward & Brownlee (2000) proposed that our Moon plays a number of critical roles in keeping the Earth "uncommonly" habitable since it causes lunar tides, stabilizes the Earth's spin axis, and slows the Earth's rotation rate, all believed to be important for the development of complex life. As proposed in Green et al. (2020) our Moon may have also provided a magnetic shield at a time when the early Earth was developing an atmosphere through outgassing and exposed to extremes in space weather produced by our young Sun. In a similar manner, terrestrial exoplanets with a significant exomoon may also have these same advantages and may harbor complex life thereby focusing our future research attention on these special objects is of greater importance.

In addition to investigating techniques and developing the capability to directly find an exomoon (e.g., Kipping 2011a; Heller et al. 2014), there have been a number of efforts to try and find exoplanets with magnetospheres. Based on the solar system, one of the most well-known wave phenomena for planets with magnetospheres is the release of escaping radio emissions generated by the cyclotron maser instability (CMI) mechanism that derives their named based on the frequency range of the observed emission. It is well known that this type of emission is closely related to the local gyrofrequency above a planet's aurora and therefore provides important clues to the presence of a planet's magnetic field and its strength. For example, the Earth's intense auroral-related radio emission is called Auroral Kilometric Radiation (AKR) and the Jovian Decametric (DAM) emissions are CMI related emissions from Jupiter's auroral zone.

It is believed that the intense auroral-related radio emission is the best indicator of planetary magnetospheres (e.g., Bastian et al. 2000; Zarka et al. 2001). The CMI generated radio emissions produce intense radiation perpendicular to the local magnetic field but the resulting emission cone can be filled-in by refraction or hollow. For instance, the emission cone of AKR has been observed to be relatively well filled in (Green & Gallagher 1985) at higher frequencies and may be hollow at lower frequencies (Calvert 1987) while the Jovian DAM emissions produce hollow emission cones (Green 1984) as illustrated in Figures 4(A) and (B), respectively. The Earth's AKR emission cone points tailward with partially overlapping northern and southern hemisphere cones (only the northern hemisphere cone at one frequency is shown in Figure 4(A)) and is not dependent on Earth's rotation or the location of the Moon.

Zoom In Zoom Out Reset image size

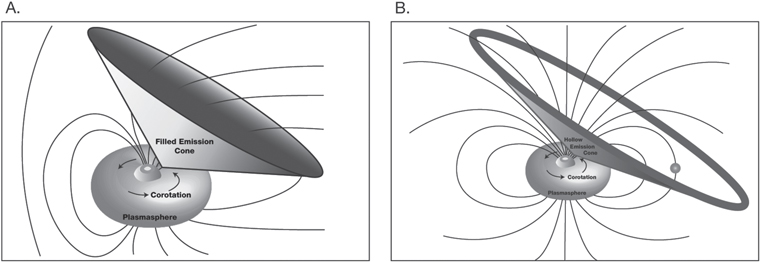

One aspect of the Jovian DAM emission is that it is strongly coupled with the moon Io, which has a thin atmosphere allowing an ionospheric current to connect field lines from Jupiter creating a constant current and therefore a constant aurora and resulting CMI related radio emissions. These Io controlled DAM emissions produce hollow emission cones that move with Io around the planet, which has an orbital period of about 42 hr. Io is in an elliptical orbit and is so close to the planet Jupiter that the energy from the very strong tidal forces is dissipated through volcanic activity on the moon that are so strong that a torus of escaping material is left in its wake that stretches around Jupiter. Alfvén waves are set up in the Io torus that produce magnetospheric currents stretching all the way to the Jovian auroral regions that also trigger additional CMI emissions that produce a set of nested hollow emission cones. Near equatorial spacecraft, such as the Voyager 1 and 2 missions, observed the Io-DAM emissions as a series of arc-like structures in frequency-time spectrograms. The shape of the nested emission cones, in frequency-time spectrograms, are strongly controlled by the higher moments of the Jovian magnetic fields since the strongly right-hand polarized DAM radiation propagating from the source over these intense magnetic islands (Green 1984) suffer significant refraction. In addition, Jupiter's moon Ganymede also produces aurora, not only in the upper atmosphere of Jupiter, but also in the very tenuous Ganymede atmosphere since that moon is the only one in the solar system that has been observed to currently generate its own magnetosphere (e.g., Wang et al. 2018). The rather small Ganymede magnetosphere is antialigned with Jupiter which is similar to the lower left panel in Figure 1. These connected field lines also facilitate the exchange of atmospheric constituents.

In the case of both an exoplanet and exomoon with magnetospheres, we now have a new situation in which the exomoon would be controlling the location of a potential CMI emission cone and producing either a hollow or filled-in emission pattern. From a distant radio observer, periodicities in an observed CMI emission cone pattern along with the radio emission frequency not only could point to the existence and strength of an exoplanet's magnetosphere but also the existence of an exomoon. The extent of the emission cone, ranging from completely hollow to completely filled-in provides additional information about the extent of the exoplanet's ionosphere. In this manner, the detection and analysis of CMI generated radio emissions may provide additional information as to the habitability of the exoplanet.

At this time, CMI radio emissions from exoplanet and/or exomoon magnetospheres have not had a confirmed detection, but there are three candidate systems under study (Turner et al. 2020). In addition, there are a number of significant efforts underway to make these types of measurements (Griessmeier et al. 2011). Plans are underway to develop an extensive radio observatory on the far side of the moon, named FARSIDE (Burns et al. 2021). This system is being designed to detect radio emission not only from solar system objects but from stellar radio bursts and the CMI emissions from potentially habitable exoplanets in the frequency range from 0.1–40 MHz, which encompasses both AKR and Io-DAM emission frequencies.

In this paper we modeled two dipole fields simulating the main field of the exoplanet and the exomoon when the exomoon was at several locations ranging from 4 to 18 R_p from the exoplanet in a stellar wind environment. We take the Earth–Moon dipole strengths presented in Green et al. (2020) as our starting conditions illustrating a basic magnetic topology that would evolve over time.

It is well recognized that stellar winds from many types of stars can be extremely harsh to the point of blowing away atmospheres from rocky exoplanets residing within the HZs of the host stars. Therefore, coupled exoplanet–exomoon magnetospheres are likely to be of great importance for the study of exoplanets that are exposed to extreme stellar wind and particle radiation conditions. In order to understand the long-term evolution of exoplanetary atmospheres and their suitability for creating a habitable environment that may host life, we must understand not only the stellar environment, but also whether these planets and their associated moons have magnetic fields. Future detection of exoplanet–exomoon magnetic fields from the detection of CMI radio emissions will provide a wealth of new information that should draw our attention to these systems having a greater chance of habitability.
