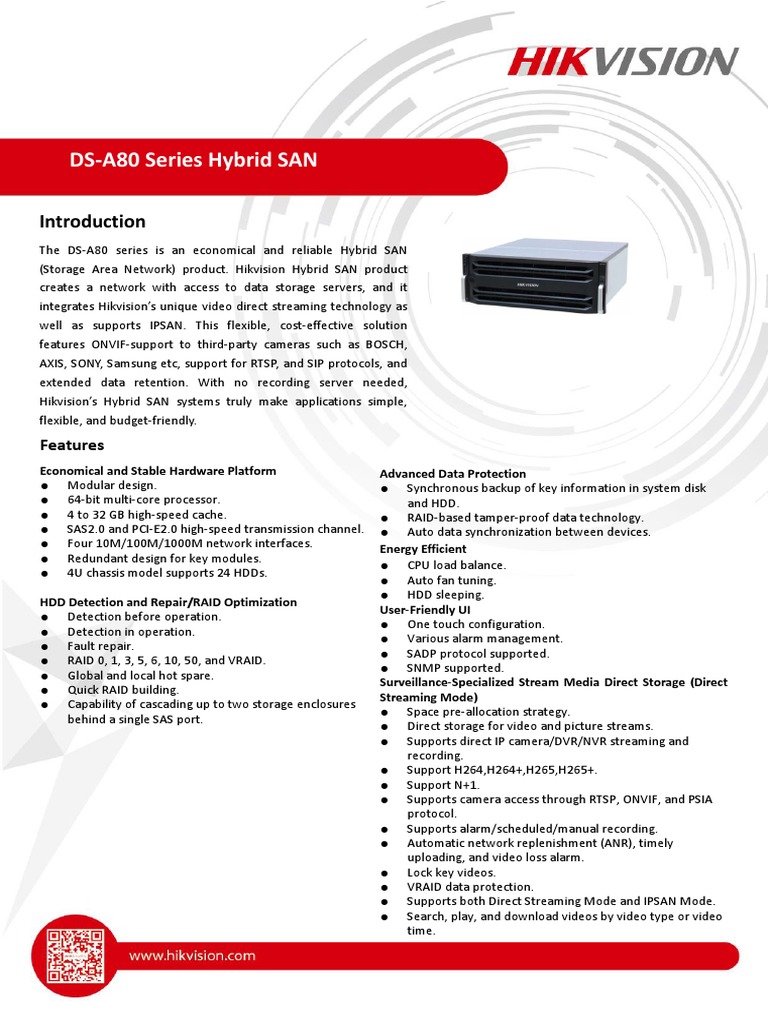

DS-A80 Series Hybrid SAN

Introduction
The DS-A80 series is an economical and reliable Hybrid SAN
(Storage Area Network) product. Hikvision Hybrid SAN product
creates a network with access to data storage servers, and it
integrates Hikvision’s unique video direct streaming technology as
well as supports IPSAN. This flexible, cost-effective solution
features ONVIF-support to third-party cameras such as BOSCH,
AXIS, SONY, Samsung etc, support for RTSP, and SIP protocols, and
extended data retention. With no recording server needed,
Hikvision’s Hybrid SAN systems truly make applications simple,
flexible, and budget-friendly.
Features
Economical and Stable Hardware Platform Advanced Data Protection
● Modular design. ● Synchronous backup of key information in system disk
● 64-bit multi-core processor. and HDD.
● 4 to 32 GB high-speed cache. ● RAID-based tamper-proof data technology.
● SAS2.0 and PCI-E2.0 high-speed transmission channel. ● Auto data synchronization between devices.
● Four 10M/100M/1000M network interfaces. Energy Efficient
● Redundant design for key modules.
● CPU load balance.
● 4U chassis model supports 24 HDDs.
● Auto fan tuning.
● HDD sleeping.
HDD Detection and Repair/RAID Optimization
User-Friendly UI
● Detection before operation.
● One touch configuration.
● Detection in operation.
● Various alarm management.
● Fault repair.
● SADP protocol supported.
● RAID 0, 1, 3, 5, 6, 10, 50, and VRAID.
● SNMP supported.
● Global and local hot spare.
Surveillance-Specialized Stream Media Direct Storage (Direct
● Quick RAID building.
Streaming Mode)
● Capability of cascading up to two storage enclosures
● Space pre-allocation strategy.
behind a single SAS port.
● Direct storage for video and picture streams.
● Supports direct IP camera/DVR/NVR streaming and
recording.
● Support H264,H264+,H265,H265+.
● Support N+1.
● Supports camera access through RTSP, ONVIF, and PSIA
protocol.
● Supports alarm/scheduled/manual recording.
● Automatic network replenishment (ANR), timely
uploading, and video loss alarm.
● Lock key videos.
● VRAID data protection.
● Supports both Direct Streaming Mode and IPSAN Mode.
● Search, play, and download videos by video type or video
time.
 Specification
Model DS-A80624S
Direct Streaming Mode:
320-ch recording + playback
Performance video (2 Mbps) + picture
IPSAN 180-ch recording + playback
Processor One controller (64-bit multi-core processor)
Controller
Cache 4 to 32 GB
HDD slot 24
Interface/capacity SATA/1TB, 2TB, 3TB, 4TB, 6TB,8TB
HDD Hot-swapping Supported
HDD support Single, RAID(Enterprise Hard Disk)
RAID RAID 0, 1, 3, 5, 6, 10, 50, VRAID, JBOD, Hot-Spare
Network Protocol iSCSI, RTSP, ONVIF, PSIA
Disk management Disk inspection, alarm and repair
Storage
Logical volume
Management iSCSI volume, video volume management
management
Recording mode Timing recording, manual recording, dual-stream recording, alarm recording
Recording Video protection Lock key video, N+1 service protection, ANR, video loss detection and alarm
Management Searching mode Search by time and event
Downloading mode Quick download, batch download, download by segment, download by merging
Management mode Web-based GUI, serial port CLI, centralized management of multiple devices
Device
Alarm mode Sound, light, email, message, web page
Maintenance
Log downloading Download no web page
Data network interface 3, 1000M Ethernet interface
Management network
1, 1000M Ethernet interface
interface
External MiniSAS interface Supported
interface COM 1
USB 3.0 2
Alarm interface 1
HDMI 2
Power supply Redundant
● Working: ≤ 430(1466 BTU with 24 HDDs)
Consumption (with HDDs)
● Rated: ≤ 800 W
● Working: +5 °C to +40 °C (41 °F to 104 °F)
Environment temperature
● Storing: -40 °C to +55 °C (-104 °F to +131 °F)
General
● Working: 20% to 80%RH (non-condensing/frozen);
Environment humidity
● Storing: 5% to 90%RH (non-condensing/frozen)
Chassis 4U (19-inch height)
Dimensions (W × H × D) 447 × 172 × 550mm (17.6 x 6.8 x 21.7in)
Weight (without HDDs) ≤ 33.5kg
Typical Application

Available Models
DS-A80624S

Available HDDs
Hikvision Tested and recommended HDDs
Seagate MAKARA Series (eg. ST8000NM0055) / Seagate MakaraBP Series (eg. ST6000NM0115) / WD RE series (eg. WD8002FRYZ-31) /
HGST 7k6000 series (eg. HUH728080ALE600)

Note: Enterprise HDD strong recommended when used in RAID mode and ISCSI application due to more stability
design features; if Surveillance HDD need to be Used, please consult with Hikvision Sales.
