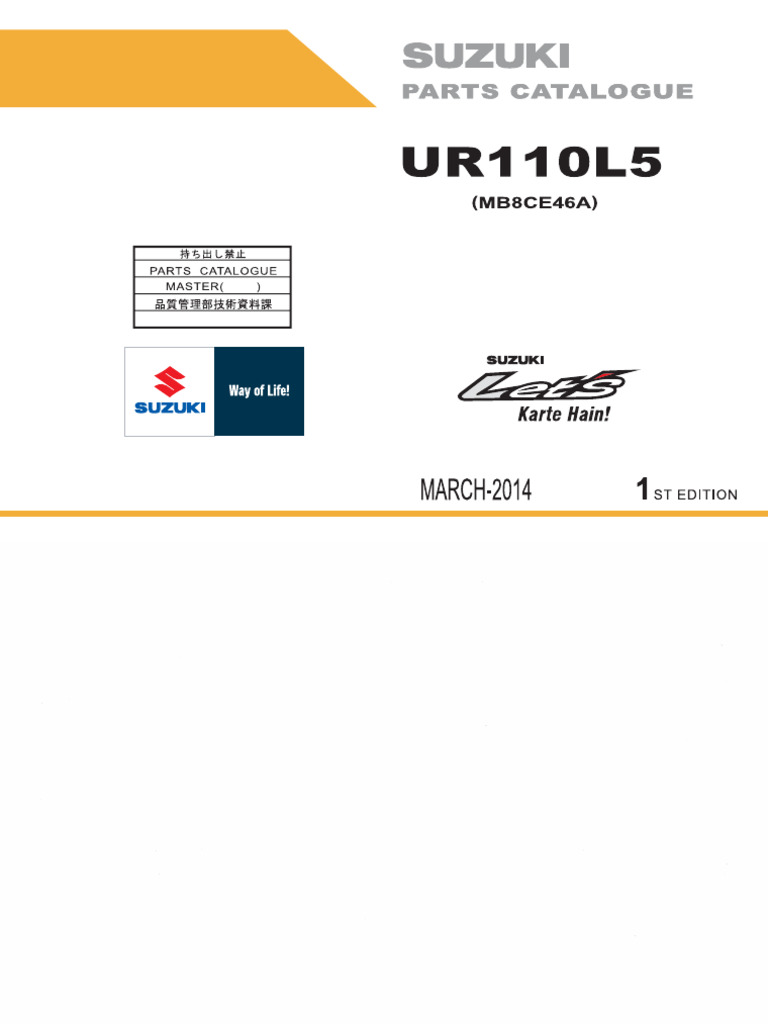

SUZUKI

PARTS CATALOGUE

UR110L5
(MB8CE46A)

~'#:, t:l::llA~.lt.
PARTS CATALOGUE
MASTER( )
~-~J!ft!Ut~it$1-=

SUZUKI

*
SUZUKI

MARCH-2014 1ST EDITION

 INFORMATION
ILLUSTRATION INDEX

ENGINE
TRANSMISSION

ELECTRICAL

BODY

PARTS NUMBER INDEX

FIG. NO. TITLE ADDRESS NO. FIG. NO. TITLE ADDRESS NO.

102A CYLINDER HEAD COVER 1-B-2 35 435A FRONT LEG SHIELD 1-D-8
2 103A CYLINDER HEAD 1-B-3 36 435A FRONT LEG SHIELD 1-D-9
3 107A CYLINDER 1-B-4 37 438A SIDE LEG SHIELD 1-D-10
4 108A CRANKCASE 1-B-5 38 440A REAR LEG SHIELD 1-D-11
5 112A CRANKCASE COVER 1-B-6 39 445A FRAME COVER 1-D-12
6 120A CRANKSHAFT 1-B-7 40 445A FRAME COVER 1-D-13
7 126A CAMSHAFTNALVE 1-B-8 41 456A HELMET BOX 1-D-14
8 127A CAM CHAIN 1-B-9 42 460A FRONT FENDER 1-D-15
9 130A CARBURETOR 1-B-10 43 462A HANDLEBAR 1-E-2
10 130A CARBURETOR 1-B-11 44 463A HANDLE COVER 1-E-3
11 155A AIR CLEANER 1-B-12 45 467A HANDLE LEVER 1-E-4
12 163A MUFFLER 1-B-13 46 474A REAR FENDER 1-E-5
13 170A OIL PUMP 1-B-14 47 496A LABEL 1-E-6
14 181A COOLING FAN 1-B-15 48 505A SEAT 1-E-7
15 189A 2ND AIR 1-C-2 49 521A FRONT FORK DAMPER 1-E-8
16 210A TRANSMISSION (1) 1-C-3 50 521A FRONT FORK DAMPER 1-E-9
17 211A TRANSMISSION (2) 1-C-4 51 524A STEERING STEM 1-E-10
18 240A KICK STARTER 1-C-5 52 530A FRONT WHEEL 1-E-11
19 301A STARTING MOTOR 1-C-6 53 545A REAR SHOCK ABSORBER 1-E-12
20 303A MAGNETO 1-C-7 54 550A REAR WHEEL 1-E-13
21 310A BATTERY 1-C-8 55 940A FRONT LICENSE PLATE SET (OPTIONAL) 1-E-14
22 312A ELECTRICAL 1-C-9 56 954A FRONT BOX SET (OPTIONAL) 1-E-15
23 330A SPEEDOMETER 1-C-10
24 333A HEAD LAMP 1-C-11
25 335A FRONT TURN SIGNAL LAMP 1-C-12
26 339A REAR COMBINATION LAMP 1-C-13
27 350A WIRING HARNESS 1-C-14
28 352A LOCK SET 1-C-15
29 401A FRAME 1-D-2
30 405A BATTERY HOLDER 1-D-3
31 407A STAND 1-D-4
32 417A PILLION FOOTREST 1-D-5
33 420A FUEL TANK 1-D-6
34 421A FUEL COCK 1-D-7
UR110L5
 PREFACE

II
5-2. In respect of rubber hoses and vinyl tubes, please be sure to use them by cutting off
When it becomes necessary to replace parts on SUZUKI MOTORCYCLES, always use SUZUKI according to the length mentioned on parts catalogue or what is actually required on the
GENUINE PARTS which have passed a strict inspection which guarantees quality and performance. vehicle.

This parts catalogue covers the list of all service parts for SUZUKI UR11 OL5.
5-3. Note that the drawings on the illustration page are for ready reference of spare parts number,
INSTRUCTIONS FOR QUOTING THE CATALOGUE not to be used as an assembly manual.
When assembling, use "SUZUKI SERVICE MANUAL".
1. DIMENSIONS
Dimensions ofthe parts in this catalogue are indicated in unit millimeters. 6. SPECIFICATION CODE
This catalogue contains the parts for the model designed for the following spec.;
2. ABBREVIATIONS spec. code : P7 4.
Abbreviations used in this catalogue are as follows:
AR :As required 7. SERIAL FRAME NUMBER
NT : Numberofteeth
ASSY :Assembly OPT :Optional
E. NO. :Engine number UR110L5: MB8CE46ACN810000 ~
OS :Oversize
F. NO. : Frame number STD :Standard
D : Diameter of material T :Thickness
ID :Inside diameter US :Undersize
OD : Outside diameter W :Width
L :Length
LH : Left hand side
RH : Right hand side

-1 00045 : Up to F. NO.1 00045

100046- : FromF.N0.100046
12 x 34 x 5.6........ Figures in the description column
I I I showthedimensionsofparts.
ID OD T(orW,L)
___.
12345-56781 (Parts No.): indicates thatthe parts number was
changed to 12345-56781 and the new parts are interchangeable with
the former ones but the former ones are not interchangeable with
new ones.
-+--
12345-56781 (Parts No.) : indicates that the former and new
parts are interchangeable with each other and both are usable.

3) INNER PARTS OF ASSEMBLY

Part name with a dot(.) in front as shown in the description column indicates the component of the
assembly also available individually.

4) MODIFICATION NOTICE
A parts bulletin will be sent to you on all occasions when changes in parts occur, including
interchangeable modifications between new parts and old ones.

5. NOTE
5-1. There are some different parts from those of production models among spare parts for the
administrative reasons and common use of them with other models.
COLOUR CHART MILLIMETER-. INCH CONVERSION CHART
TABLEAU COULEURS
0 1 2 3 4 5 6 7 8 9
COLOR NO. COLOUR DESCRIPTION COLOR NO. COLOR DESCRIPTION
NO DE COULEUR DESCRIPTION DE COULEUR NO DE COULEUR DESCRIPTION DE COULEUR 00 .. 000 .039 .079 .118 .157 .197 .236 .276 .315 .354

AX9 YHG,YLF,YHF,019,30H,07G, YVB 13L [Link] SILVER 10 .394 .433 .472 .512 .551 .591 .630 .669 .709 .748

20 .787 .827 .866 .906 .945 .984 1.024 1.063 1.102 1.142
AYH YHG,YLF,YHF,019,30H,07G,YD8 17U [Link] GRAY
30 1.181 1.220 1.260 1.299 1.339 1.378 1.417 1.457 1.496 1.535
AYJ YHG,YLF,YHF,019,30H,07G,YPA YHG [Link] GRAY
40 1.575 1.614 1.654 1.693 1.732 1.772 1.811 1.850 1.890 1.929
AYK YHG,YLF,YHF,019,30H,07G,YSF YLF [Link] GRAY 2.008 2.047 2.087 2.126 2.165 2.205 2.214 2.283 2.323
50 1.969

AYL YHG,YLF,YHF,019,30H,07G,YVZ YHF [Link] GRAY 60 2.362 2.402 2.441 2.480 2.520 2.559 2.598 2.638 2.677 2.717

70 2.756 2.795 2.835 2.874 2.913 2.953 2.992 3.031 3.071 3.110
AYM YVB,YLF,YHF,30H,019,07G 019 [Link]
80 3.150 3.189 3.228 3.268 3.307 3.346 3.386 3.426 3.465 3.504
AYN YD8,YLF,YHF,30H,019,07G 30H [Link] WHITE N0.2
90 3.543 3.583 3.622 3.622 3.701 3.740 3.780 3.819 3.858 3.896

AYP YPA,YLF,YHF,30H,019,07G 07G [Link] RED

AYQ YSF,YLF,YHF,30H,019,07G 58P [Link]

Howtoread
AYR YVZ,YLF,YHF,30H,019,07G PVS STITCH GRAY

YVB [Link] BLACK 0 2 3 4

00
YD8 [Link] SILVER
10
YPA [Link] WHITE
20 0.906

[Link] BLUE
1/
YSF 30 I

YVZ

AV1
[Link] RED

58P,PVS
I 23 millimeters equal 0.906 inch

Contents are subject to change without notice or obligation.

 II
102A CYLINDER HEAD COVER (8·2) 103A CYLINDER HEAD (8·3) 107A CYLINDER (8-4) 108A CRANKCASE (8-5)

UR11 OEHL5_P74_1 02A UR110EHL5_P74_103A UR110EHL5_P74_107A UR110EHL5_P74_108A

CYLINDER HEAD COVER CYLINDER HEAD CYLINDER CRANKCASE

112A CRANKCASE COVER (8-6) 120A CRANKSHAFT (8-7) 126A CAMSHAFTNALVE (8-8) 127A CAM CHAIN (8·9)

UR11 OEHL5_P74_112A UR110EHL5_P74_120A UR110EHL5_P74_126A UR110EHL5_P74_127A

CRANKCASE COVER CRANKSHAFT CAMSHAFTNALVE CAM CHAIN
II

UR110EHL5_P74_130A
CARBURETOR

OIL PUMP (B-14)

t~ r·
~~
~
/J~
~~.
~.
UR110EHL5_P74- 189A
2ND AIR
 II
240A KICK STARTER (C-5) 301A STARTING MOTOR (C-6) 303A MAGNETO (C-7)

UR110EHL5 P74 211A UR110EHL5 P74 240A UR110EHL5 P74 301A UR110EHL5 P74 303A
TRANSMISSiON (2) KICK STARTER - STARTING MOTOR MAGNETO- -

310A BATTERY (C-8) 312A ELECTRICAL (2) (C-9) 330A SPEEDOMETER (C-10) 333A HEADLAMP (C-11)

UR110EHL5 P74 310A UR110EHL5 P74 312A UR110EHL5 P74 330A UR110EHL5 P74 333A
BATTERY - - ELECTRICAL - SPEEDOMETER- HEADLAMP- -
II
335A FRONT TURNSIGNAL LAMP (C-12) 339A REAR COMBINATION LAMP (C-13) 350A WIRING HARNESS (C-14) 352A LOCK SET (C-15)

UR110EHL5 P74 335A UR110EHL5 P74 339A UR110EHL5 P74 350A UR110EHL5 P74 352A
FRONT TURN SIGNAL LAMP REAR COMBINATION LAMP WIRING HARNES-S LOCKSET- -

401A FRAME (D-2) 405A BATTERY HOLDER (D-3) 407A STAND (D-4) 417A PILLION FOOTREST (D-5)

'-f~
~~
\
UR110EHL5 P74 401A
~
UR110EHL5 P74 405A UR110EHL5 P74 407A UR110EHL5 P74 417A
FRAME - - BATTERY HOLDER STAND - - PILLION FOOTREST
420A FUEL TANK (D-6) 421A FUEL COCK (D-7)

II
435A FRONT LEG SHIELD (D-8) 435A FRONT LEG SHIELD (D-9)

li0.1Dekoxzu @ 8kc 8

;-tufkurzu

~ ~ ~
UR110EHL5 P74 420A UR110EHL5 P74 421A UR110EHL5 P74 435A UR110EHL5 P74 435A
FUEL TANK- - FUELCOCK- - FRONT LEG-SHIELD FRONT LEG-SHIELD

438A SIDE LEG SHIELD (D-1 0) 440A REAR LEG SHIELD (D-11) 445A FRAME COVER (D-12) 445A FRAME COVER (D-13)

UR110EHL5 P74 438A UR110EHL5_P74_440A UR110EHL5 P74 445A UR110EHL5 P74 445A
SIDE LEG SHIELD REAR LEG SHIELD FRAME COVER - FRAME COVER -
II
456A HELMET BOX (D-14) 460A FRONT FENDER (C-15) 462A HANDLEBAR (E-2) 463A HANDLE COVER (E-3)

UR110EHL5 P74 456A UR110EHL5 P74 460A UR110EHL5 P74 462A UR110EHL5 P74 463A
HELMETBOX - FRONT FENDER- HANDLEBAR - HANDLE COVER-

467A HANDLE LEVER (E-4) 474A REAR FENDER (E-5) 496A LABEL(E-6) 505A SEAT (E-7)
1

llc'~;l'
UR110EHL5 P74 474A UR110EHL5 P74 496A 2 UR110EHL5 P74 505A
REAR FENDER - LABEL - - SEAT - -
 II
521A FRONT FORK DAMPER (E-8) 521A FRONT FORK DAMPER (E-9) 524A STEERING STEM (E-10)

~ ~
UR110EHL5 P74 521A UR110EHL5 P74 521A UR110EHL5 P74 524A UR110EHL5 P74 530A
FRONT FORk DAMPER FRONT FORk DAMPER STEERING STEM FRONT WHEEL -

545A REAR SHOCK ABSORBER (E-12) 550A REAR WHEEL (E-13) 940A FRONT LICENSE PLATE SET (E-14) 954A FRONT BOX SET (OPTIONAL) (E-15)
(OPTIONAL)

UR110EHL5 P74 545A UR110EHL5 P74 550A UR110EHL5 P74 940A UR110EHL5 P74 954A
REAR SHOCk AB-SORBER REARWHEEL - FRONT LICENSE-PLATE SET (OPTIONAL) FRONT BOXSET-(OPTIONAL)
102A . 102A (B-2) CYLINDER HEAD COVER

REF NO. PART NO. DESCRIPTION QTY REMARKS

8 11170-09J80-000 COVER, CYLINDER HEAD

b 7 2 11173-09J50-000 GASKET, CYLINDER HEAD COVER

J
3
3 11176-09JOO-OOO PLATE, BREATHER
4 11177-09J50-000 GASKET, BREATHER PLATE
5 11191-27E30-000 WASHER, HEAD COVER BOLT 2
6 09119-06120-000 BOLT (L:21.7) 2
7 02112-051 OA-000 SCREW 3
8 09206-08008-000 PIN (6.3X8X12)

UR110EHL5_P74_102A
CYLINDER HEAD COVER
103A 103A (B-3) CYLINDER HEAD

REF NO. PART NO. DESCRIPTION QTY REMARKS

1 1111 0-09J20-000 HEAD, CYLINDER 1

2 09381-1 0004-000 .SNAP RING 2

II
3 11141-09J50-000 GASKET, CYLINDER HEAD 1
4 09103-06501-000 BOLT (6X100) 2
5 09206-10016-000 PIN (8.2X10X13) 2
6 08316-1 008A-OOO NUT 4
7 09482-00645-000 SPARK PLUG
8 13110-39JOO-OOO PIPE, INTAKE
9 13129-23JOO-OOO INSULATOR, CARBURETOR
10 13132-33G50-000 0 RING, INSULATOR
11 09280-26009-000 0 RING (D:2.4,1D:25.7) 1
12 01547-0625A-OOO BOLT 4

UR110EHL5_P74_103A
CYLINDER HEAD
 107A 107A (B-4) CYLINDER

REF NO. PART NO. DESCRIPTION

2 1 1121 0-09J40-0FO CYLINDER

2 11241-09J50-000 GASKET, CYLINDER 1

11
3 091 08-08299-000 STUD BOLT (L:185) 4
4 09206-1 0016-000 PIN (8.2X10X13) 2

UR110EHL
CYLINDER 5_P74_107A
108A 108A (B-5) CRANKCASE
REF NO. PART NO. DESCRIPTION QTY REMARKS

6
1 11302-09810-000 CRANKCASE SET
2 11325-09JOO-OOO .BUSH, ENGINE MTG

I
3 11315-39J00-000 .BUSH, ENGINE MTG 2
4 11316-39JOO-OOO .BUSH, REAR SHOCKABS
5-6 5 09206-10014-000 PIN (6.4X10X20) 2
6 01547-0655A-OOO BOLT 5
7
7 01547-0695A-OOO BOLT 2

24
8 11323-09JOO-OOO CAP, CRANKCASE LH 1
9 11324-09JOO-OOO 0 RING, CRANKCASE LH CAP
10 09206-08008-000 PIN (6.3X8X12) 2
11 01547-0625A-OOO BOLT 3
12 11611-39JOO-OOO BOLT, ENG MTG (L:240)
13 08316-1 01 OA-000 NUT
14 09168-08016-000 GASKET (8.2X14X1) 2
15 01550-0812A-OOO PLUG 2
16 09168-08016-000 GASKET (8.2X14X1)
17 01550-0812A-OOO PLUG
18 09168-08016-000 GASKET (8.2X14X1) NEW PN = 09168-08008-000
19 01550-0812A-OOO PLUG
20 09168-08016-000 GASKET (8.2X14X1)
16~
17
21 01550-0812A-OOO PLUG OILORAIN
22 09168-08016-000 GASKET (8.2X14X1)
23 01550-0812A-OOO PLUG
24 11430-3981 0-000 COVER SET, GEAR BOX
25 11484-39JOO-OOO GASKET, GEAR BOX COVER

~ 26
27
09206-08008-000
01547-0630A-OOO
PIN (6.3X8X12) 2
BOLT 8
28 11971-09JOO-OOO GAUGE, OIL LEVEL
29 09280-17003-000 0 RING (0:3.1,10:16.8)

UR11 OEHL5_P74_1 08A

CRANKCASE
112A 112A (~·6) CRANKCASE COVER

REF NO. PART NO. DESCRIPTION QTY REMARKS

8
1 11340-39J 10-000 COVER, CLUTCH
2 11482-39JOO-OOO GASKET, CLUTCH COVER(NA) 1

E
3 09206-08008-000 PIN (6.3X8X12) 2
4 0154 7-0625B-OOO BOLT 10
5 01547-0670B-OOO BOLT
6 11347-39JOO-OOO PLATE, CLUTCH COVER LOWER
7 01547-0635B-OOO BOLT
8 11346-39JOO-OOO PLATE, CLUTCH COVER AIR INTAKE
9 01547-0612A-OOO BOLT 4
10 11380-39JOO-OOO DUCT, BELT COOLING
11 11383-39JOO-OOO DUCT, BELT COOLING INLET
12 09402-46209-000 CLAMP
13 11384-39JOO-OOO FILTER, BELT COOLING
14 11386-39JOO-OOO BAND, BELT COOLING DUCT
16

~
15 11385-39JOO-OOO GASKET, BELT COOLING DUCT N0.1
16 01547-0625A-OOO BOLT
17 01547-0660B-OOO BOLT
14

UR11 OEHL5_P74_112A
CRANKCASE COVER
120A 120A (B-7) CRANKSHAFT

REF NO. PART NO. DESCRIPTION QTY REMARKS

7 12111-39JOO-OFO PISTON

~ 2
3
12140-39JOO-OOO
12151-39JOO-OOO
RING SET, PISTON.
PIN, PISTON

•
4 09381-13001-000 SNAP RING 2
5 12200-39JOO-OOO CRANKSHAFT ASSY
6 09262-35093-000 BEARING (35X62X14) LH
7 09283-16L03-000 SEAL (16X26X7) RH
8 09283-22L03-000 SEAL (22X38X6) Li-1
9 121 00-39J00-050 PISTON SET (OS:0.5) NOT SERVICEABLE PART

UR110EHL5_P74_120A
CRANKSHAFT
126A 126A (B-8) CAMSHAFTNALVE

REF NO. PART NO. DESCRIPTION QTY REMARKS

6
1271 0-39JOO-OOO CAMSHAF.T
2 08113-60020-000 .BEARING RH
3 08113-69050-000 .BEARING LH
4 12862-09J 10-000 RETAINER, CAMSHAFT
5 02112-0612A-OOO SCREW
6 12840-39JOO-OOO ARM ASSY, VALVE ROCKER 2
7 12842-39JOO-OOO .SCREW, TAPPET ADJUSTING 2
8 12843-27A70-000 .NUT, TAPPET ADJUSTING 2
9 12861-39JOO-OOO SHAFT, VALVE ROCKER ARM INTAKE
10 12871-39JOO-OOO SHAFT, VALVE ROCKER ARM
EXHAUST
. 11 12911-09JOO-OOO VALVE, INTAKE
12 12912-09JOO-OOO VALVE, EXHAUST
2 1

~~3
13 12921-39JOO-OOO SPRING, VALVE 2
14 12931-09G20-000 RETAINER, VALVE SPRING 2
15 12932-09G1 0-000 COTIER, VALVE 4

~, ~a,~J
,.' 16 12933-09GOO-OOO SEAT, VALVE SPRING 2
17 09289-05019-000 OIL SEAL (4X10X8) 2
18 12725-20GOO-OOO SPRING, DECOMP CAM

4 s .:~ rzd . 19 12741-39JOO-OOO SPROCKET, CAMSHAFT (NT:34)

~~ff(~
20 12950-39JOO-OOO CAM, DECOMPRESSION
21 12954-39JOO-OOO STOPPER, DECOMP CAM

1 ~
22 22 12955-33GOO-OOO WASHER, DECOMP SHAFT
,. 23 09106-05028-000 BOLT (5X15) 2

~ 20 21 ' 23
24
25
09206-08008-000
09261-05005-000
PIN (6.3X8X12)
PIN (5X8)

UR11 OEHL5_P74_126A
CAMSHAFTNALVE
127A 127A (8·9) CAM CHAIN

REF NO. PART NO. DESCRIPTION QTY REMARKS

·~~-J
12760-23JOO-OOO CHAIN, CAMSHAFT DRIVE
2 12771-39JOO-OOO GUIDE, CAM CHAIN

El
3 12811-39JOO-OOO TENSIONER, CAM CHAIN
4 09103-06247-000 BOLT(6X32)
5 09168-06004-000 GASKET (6.2X11X1.2)
6 12830-39JOO-OOO ADJUSTER ASSY, TENS lONER
7 12837-39JOO-OOO GASKET, TENSIONER ADJUSTER(NA)
8 01547-06208-000 BOLT 2

UR110EHL5_P74_127A
CAM CHAIN
130A 130A (B-10) CARBURETOR

REF NO. PART NO. DESCRIPTION QTY REMARKS

13200-39JOO-OOO CARBURETOR ASSY

2 13247-23J20-000 .SCREW, DRAIN

~~ ~6
t' 3
4
13245-39JOO-OOO
13254-20010-000
.FLOATASSY
.PIN, FLOAT

::9 F:
5 13278-28GOO-OOO .0 RING, FLOAT CHANBER

29~
6 13267-09G20-000 .ADJUSTER
6; u
L/~ 4 7 13267-20GOO-OOO .ADJUSTER

35~

L7
ss
'

37-rJF20~.
...
-
f:
1-::---,"'-J
8
9
10
11
13268-09G20-000
13268-35010-000
13278-29C50-000
13291-29900-000
.SPRING
.SPRING
.ORING
.WASHER 2
ss
~ ~~r
12 13295-29900-000 .ORING 2
s ~'---J
t§J
' ~[l ~ "- of
31 13 13331-20GOO-OOO .RING

~_/\f ~ ~.~ ·~r4 ~~

14 13370-39JOO-OOO .NEEDLE ASSY
15 13385-39JOO-OOO .HOLDER, JET
[f:
rr 1211
16 13387-20GOO-OOO .RING
10
33 ~t·
Q---$9 12
,,, 9 7
17
18
13387-23JOO-OOO
13389-39JOO-OOO
.RING
.HOLDER
~2 6

~~
19 13411-33G50-000 .PLUNGER ASSY

3 ~ 20 13627-33G50-000 .BRACKET ASSY

21 13278-47090-000 .ORING

'1 ~
~~/V.'
22 13698-40BOO-OOO .CLIP
23 13481-20GOO-OOO .SPRING

u --~0 24 13481-45H00-000 .SPRING

25 13487-20GOO-OOO .ROD
0
~
26 13394-40D20-000 .ERING
27 13573-45H20-000 .SPRING
28 13601-04168-000 .SCREW 4
29 13681-04010-000 .CAP

UR110EHL5_P74_130A
CARBURETOR
130A 130A (B-11) CARBURETOR

REF NO. PART NO. DESCRIPTION QTY REMARKS

30 13683-39JOO-OOO .HOSE
31 13684-39JOO-OOO .HOSE

6,29~-@
. v~
u
4
32
33
34
35
36
37
09491-95008-000
09492-12012-000
13260-23JOO-OOO
13249-23JOO-OOO
13548-23JOO-OOO
13551-39JOO-OOO
.JET, MAIN (95)
.JET (12.5)
.TOP CAP ASSY
.GASKET
.SCREW
.PISTON VALVE
2
a
35~ I

38 13383-39JOO-OOO .NEEDLE, JET

39 13341-39JOO-OOO .JET, NEEDLE (E-1M)
40 13685-39JOO-OOO .HOSE
41 13247-28GOO-OOO .PLATE
42 09404-06429-000 CLAMP (L:45)

UR110EHL5 P74 130A

CARBURETOR -
155A 155A (B-12) AIR CLEANER

REF NO. PART NO. DESCRIPTION QTY REMARKS

13700-39JOO-OOO CLEANER ASSY, AIR

2 13740-39JOO-OOO .CAP, AIR CLEANER
3 13746-39JOO-OOO .. GASKET
4 13746-39JOO-OOO .GASKET
5 13780-39JOO-OOO .FILTER ASSY, AIR CLEANER
6 13850-39JOO-OOO .TUBE,BREATHER
7 09401-12305-000 .. CLIP 2
8 13878-1 OG00-000 .PLUG, DRAIN 2
9 13854-39JOO-OOO .COVER, BREATHER
10 13881-39JOO-OOO .TUBE, OUTLET
11 13826-33G70-000 .CLAMP 1
12 09401-14301-000 .CLIP 2
13 13892-39JOO-OOO .GROMMET
14 03541-0520A-OOO .SCREW 6
15 13891-39JOO-OOO TUBE, INLET 1
16 13893-39JOO-OOO CLAMP
17 01550-0620A-OOO BOLT 2

UR110EHL5_P74_155A
AIR CLEANER
163A 163A (B-13) MUFFLER

REF NO. PART NO. DESCRIPTION QTY REMARKS

14181-33G30-000 GASKET, EXH PIPE

2 1431 0-39JOO-OOO BODY , MUFFLER
3 14781-39JOO-OOO COVER,MUF 1
4 01421-0616A-OOO BOLT 2
5 01550-1 040B-OOO BOLT 2
6 08316-1 006A-OOO NUT 2
7 09160-06151-000 WASHER (6.5X18X1) 2
8 09180-06256-000 SPACER (6.5X9X5.7) 2
9 09320-08051-000 CUSHION 2
10 01550-0616B-OOO BOLT 2

UR110EHL5_P74_163A
MUFFLER
 170A 170A (B-14) · OIL PUMP

REF NO. PART NO. DESCRIPTION QTY REMARKS

6 16331-39JOO-OOO GEAR, OIL PUMP DRIVEN (NT:43)

2 16400-39JOO-OOO PUMP ASSY, ENGINE OIL

I '~,f/7 J~J
3 16421-20EOO-OOO PIN, OIL PUMP DRIVEN
4 08332-11 05A-OOO ERING
5 0154 7-0625A-OOO BOLT 2
6 16422-09JOO-OOO COVER, OIL PUMP 1
7 16423-09JOO-OOO 0 RING, OIL PUMP COVER
8 01547-0680A-OOO BOLT 2

~~ c@ 9
10
1651 0-39JOO-OOO
16512-09J10-000
FILTER, ENG OIL
CAP, OIL FILTER
1

11 16518-09JOO-OOO 0 RING, OIL FILTER CAP

13 \

~7
0~12 1 ~\
12 16519-09J10-000 SPRING, OIL FILTER
13 09280-13010-000 0 RING (D:1.9,1D:12.5)

~5
14 01547-0616A-OOO BOLT 2

~~a10
15 16520-09JOO-OOO STRAINER, ENG OIL

l/pcc~
16 16523-09JOO-OOO CAP, OIL STRAINER

Q--ta 17
18
16526-09JOO-OOO
16525-09JOO-OOO
PLUG, OIL STRAINER
ORING

UR110EHL5_P74_170A
OIL PUMP
181A 181A (B-15) COOLING FAN

REF NO. PART NO. DESCRIPTION QTY REMARKS

17110-09JOO-OOO FAN, COOLING

2 01550-0612A-OOO BOLT 3

11

~
3
4
5
6
7
8
17120-39JOO-OOO
17122-39JOO-OOO
17123-09J00-000
17124-39JOO-OOO
01547-0625A-OOO
03541-0516A-OOO
COWLING, CYLINDER UPPER
COWLING, CYLINDER LOWER
MOLD, CYLINDER COWLING
MOLD, TENS lONER ADJUSTER
BOLT
SCREW
1
2
a
9 17130-09J 10-000 COWLING, FAN
10 0154 7-0625A-OOO BOLT 2
11 03541-0516A-OOO SCREW 2
12 17125-39JOO-OOO COVER, CYLINDER COWLING 1
13 09409-06L07-000 CLIP 2

12

UR110EHL5_P74_181A
COOLING FAN
189A 189A (C-2) 2ND AIR

REF NO. PART NO. DESCRIPTION QTY REMARKS

18450-33G10-000 VALVE ASSY, 2ND AIR REED

2 18461-39JOO-OOO HOSE, 2ND AIR VALVE

E
3 1851 0-09J 10-000 VALVE ASSY, AIR CUT
4 18531-09J10-000 COVER, 2ND AIR REED VALVE
5 18630-09JOO-OOO SPACER, 2ND AIR VALVE SPRT
6 18711-39JOO-OOO HOSE, 2ND AIR CLNR
7 18762-39JOO-OOO HOSE, 2ND AIR VALVE VACUUM
8 09320-07014-000 CUSHION
9 09401-15101-000 CLIP 4
10 01547-0616A-OOO BOLT 2
11 01547-0625A-OOO BOLT ECN 39J-0737
12 09401-06102-000 CLIP,2ND AIR VACCUM HOSE NOT ILLUSTRATED

UR110EHL5_P74_189A
2ND AIR
210A 210A (C-3) TRANSMISSION (1)

REF NO. PART NO. DESCRIPTION QTY REMARKS

1 21120-39JOO-OOO FACE, MOVABLE DRIVE

2 21125-39JOO-OOO SPACER, MOVABLE DRIVE
3 21431-39JOO-OOO PLATE, MOVABLE DRIVE
4 21481-39JOO-OOO DAMPER, MOVABLE DRIVE PLATE 3
5 21650-39J30-000 ROLLER, MOVABLE DRIVE 6
6 21111-39JOO-OOO FACE, FIXED DRIVE (NT:70)
7 21113-39JOO-OOO FAN, FIXED DRIVE
8 2121 0-39JOO-OOO FACE, FIXED DRIVEN
9 21240-39JOO-OOO FACE, MOVABLE DRIVEN

16 10 21243-39JOO-OOO SPRING, MOVABLE DRIVEN NEW PN = 21243-09J00-000

11 21245-33GOO-OOO 0 RING, MOVABLE DRIVEN 2
21 12 09284-34003-000 .OIL SEAL (34X39X3) 2
13 21248-39JOO-OOO PIN, MOVABLE DRIVEN 3
14 21249-33GOO-OOO SPACER, MOVABLE DRIVEN PIN 3
15 21471-09JOO-OOO SHEET, MOVABLE DRIVEN
16 21501-39JOO-OOO CLUTCH ASSY, SHOE NEW PN = 21501-13H50-000
17 21518-40JOO-OOO NUT
18 09262-15051-000 .BEARING (15X24X5) LH
19 09263-20105-000 .BEARING (20X26X14) RH
20 09381-24005-000 CIRCLIP
21 21220-41H10-000 HOUSING, CLUTCH
22 09164-12020-000 WASHER (12.2X22X1.2)
23 09140-12039-000 NUT
24 27601-39J10-000 V-BELT, DRIVE

(llf!J

UR110EHL5_P74_21 OA
TRANSMISSION (1)
211A 211A (C-4) TRANSMISSION (2)

REF NO. PART NO. DESCRIPTION QTY REMARKS

24131-33G51-000 SHAFT, DRIVE (NT:17) MUSASHI

2 24131-33G60-000 SHAFT, DRIVE (NT:17) MSIL
3-1 24150-39JOO-OOO SHAFT, IDLE (NT:13/42) MUSASHI
3-2 24150-39J20-000 SHAFT, IDLE (NT:13/42) MSIL
4 09283-20069-000 SEAL, DRIVE SHAFT OIL
5 0811 0-62020-000 BEARING RH
6-1 09262-20151-000 BEARING (20X47X14) MIDDLE ,NSK

b~1
6-2 09262-20158-000 BEARING (20X47X14) MIDDLE, FAG
6-3 09262-20171-000 BEARING (20X47X14) MIDDLE ,NEI
7 09262-12035-000 BEARING LH
NEW PN = 08113-60010-000

f«~0@
8 09262-12034-000 BEARING RH
9 09181-12167-000 SHIM (12X20X1)

~· ~# :t)
8
10 24141-39J10-000 SHAFT ASSY, REAR AXLE

3 11 24371-39J10-000 GEAR, FINAL DRIVEN (NT:45)

12 08331-31249-000 CIRCLIP 2

C@(-' 13 09262-22041-000 BEARING (22X50X14) 1 RH

5
~~;c~ 14
15
09283-27025-000
0811 0-62030-000
SEAL, AXLE SHAFT OIL
BEARING
1
LH

® 16
17
24751-07900-000
02122-0616A-OOO
RETAINER, AXLE SHAFT BEARING
SCREW 2

-~

UR110EHL5_P74_211A
TRANSMISSION (2)
240A 240A (C-5) KICK STARTER

REF NO. PART NO. DESCRIPTION QTY REMARKS

2621 0-39JOO-OOO SHAFT, KICK STARTER {NT:54)

2 26212-46800-000 SPRING, KICK STARTER SHAFT

El
3 26213-39JOO-OOO BUSH, KICK SHAFT
4 09160-14055-000 WASHER (14.5X22X0.8)
5 08331-31149-000 CIRCLIP
6 26200-39JOO-OOO GEAR ASSY, KICK STARTER DRIVEN
7 26231-39JOO-OOO STARTER, KICK, RH
8 09140-12039-000 NUT
9 09164-12020-000 WASHER (12.2X22X1.2)
10 26300-39JOO-OOO LEVER ASSY, KICK STARTER
11 26314-33G10-000 BOLT, KICK STARTER LEVER

UR11 OEHL5_P74_240A
KICK STARTER
301A 301A (C-6) STARTING MOTOR

REF NO. PART NO. DESCRIPTION QTY REMARKS

8 311 00-39JOO-OOO MOTOR ASSY, STARTING

~
2 31130-32GOO"OOO .HOLDERASSY, STARTING
3 31135-19000-000 .SPRING 2
4 31156-32GOO-OOO .ORING 1
5 31157-32GOO-OOO .GASKET
6 02112-3406A-OOO .SCREW 1
7 02112-3516A-OOO .SCREW 3
8 31370-32GOO-OOO PINION ASSY, STARTING MOTOR 1
9 01547-0630A-OOO BOLT 2

UR110EHL5_P74_301A
STARTING MOTOR
303A 303A (C-7) MAGNETO

REF NO. PART NO. DESCRIPTION QTY REMARKS

3 31497-39JOO-OOO CLAMP, MAGNETO LEAD

2 32101-39JOO-OOO STATORASSY
3 321 02-39JOO-OOO ROTORASSY 1
4 01547-0620A-OOO BOLT 2
5 015:47-0612A-OOO BOLT 2
6 01547-0612A-OOO BOLT
7 08316-1 01 OA-000 NUT

II
8 08341-31 039-000 KEY

UR110EHL5_P74_303A
MAGNETO
 310A 310A (C-8) BATTERY

REF NO. PART NO. DESCRIPTION QTY REMARKS

2 1-1 3361 0-39JOO-OOO BATIERYASSY NOT SERVICEABLE PART

~
1-2 3361 0-39J 10-000 BATIERYASSY NOT SERVICEABLE PART
2 33652-39JOO-OOO PROTECTOR,BATIERY 3
2

, UR110EHL5_P74_310A
BATIERY
312A 312A (C-9) ELECTRICAL

REF NO. PART NO. DESCRIPTION QTY REMARKS

1-1 31800-23JOO-OOO RELAYASSY, STARTING MOTOR ANU

1-2 31800-23J 10-000 RELAY ASSY, STARTING MOTOR BG LI-IN
7

~~
2 32800-39J30-000 RECTIFIER ASSY
3 02112-0612A-OOO SCREW
4 32900-39JOO-OOO CDI UNIT
5 3341 0-39JOO-OOO COILASSY, IGNITION

elf 6 3351 0-39JOO-OOO .CAP, SPARK PLUG

II
7 33541-39JOO-OOO .SEAL, SPARK PLUG

8 8 33542-39JOO-OOO .SEAL, HIGH TENSION CORD 1

9 01547-0616A-OOO BOLT 2
4

2
@-1

UR11 OEHL5_P74_312A
ELECTRICAL
 330A 330A (C-10) SPEEDOMETER

, REF NO.

2
3
4
PART NO.

341 00-39JOO-OOO
34111-39JOO-OOO
34112-39JOO-OOO
34120-39JOO-OOO
DESCRIPTION

SPEEDOMETER ASSY
.CASE
.LENS
.SPEEDOMETER
QTY REMARKS

5 34173-39JOO-OOO .CORDASSY 1
6 34186-39JOO-OOO .SCREW 2
7 34383-39JOO-OOO .SCREW 3

I
8 09471-12077-000 .BULB (12V1.7W) 3
9 03541-0516A-OOO SCREW 3
10 3491 0-39JOO-OOO CABLE ASSY, SPEEDOMETER
11 34930-39JOO-OOO GUIDE, SPEEDOMETER CABLE
13

~1
12 02112-0516A-OOO SCREW
13 02142-0612A-OOO SCREW

tJ 1

v---
2
_j
9

12

UR11 OEHL5_P74_330A
SPEEDOMETER
333A 333A (C-11) HEAD LAMP

REF NO. PART NO. DESCRIPTION QTY REMARKS

6 351 00-39JOO-OOO HEADLAMP ASSY

~
2 35171-39JOO-OOO .CORDASSY
3 35174-25JOO-OOO .RUBBER CAP 2

<
->
.......__
4 09471-12216-000 .BULB (12V5W)
5 09471-12225-000 .BULB (12V,35/35W)
6 35194-23FOO-OOO CLIP, HEADLAMP 2
7 09136-05051-000 SCREW (5X12) 1

II

UR11 OEHL5_P74 333A

HEADLAMP -
335A 335A (C-12) FRONT TURNSIGNAL LAMP

REF NO. PART NO. DESCRIPTION QTY REMARKS

3560 1-39JOO-OOO LAMP ASSY, FRQNT TURNSIGNAL RH

2 35618-39JOO-OOO .CORD ASSY, RH
2
3 094 71-12226-000 .BULB (12V,10W)

3~
8

tb
4 35602-39JOO-OOO LAMP ASSY, FRONT TURNSIGNAL LH

b '
5
6
35638-39JOO-OOO
09471-12226-000
.CORD ASSY, LH
.BULB (12V,10W)
1
1
7 03541-0416A-OOO SCREW 6
8 3861 0-25J1 0-000 RELAYASSY, TURNSIGNAL

UR11 OEHL5_P74_335A
FRONTTURNSIGNAL LAMP
339A 339A (C-13) REAR COMBINATION LAMP

REF NO. PART NO. DESCRIPTION QTY REMARKS

3571 0-39JOO-OOO LAMP ASSY, REAR COMBINATION

2 35712 -39JOO-OOO .LENS 1
3 09471-12128-000 .BULB (12V,21/5W) 1
4 09471-12226-000 .BULB (12V,10W) 2
5 02112-0416A-OOO .SCREW 4
6 35970-28GOO-OOO REFLECTOR ASSY, REAR
7 08316-1 005A-OOO NUT

El
8 09404-06429-000 CLAMP (L:45)
9 03541-0516A-OOO SCREW 4

UR11 OEHL5_P74_339A
REAR COMBINATION LAMP
350A 350A (C-14) WIRING HARNESS

REF NO. PART NO. DESCRIPTION QTY REMARKS

3661 0-39JOO-OOO HARNESS, WIRING 1

2 09481-10001-000 .FUSE (10A) 2
3 33624-28GOO-OOO .CAP, BATTERY
4 38500-33G63-000 HORNASSY
5 02112-0612A-OOO SCREW
6 37310-33G11-000 SWITCH ASSY,STARTER
7 37340-39J 10-000 SWITCH ASSY, LIGHTING
8 37420-33G30-000 SWITCH ASSY, DIMMER
9 3751 0-33G30-000 SWITCH ASSY, TURNSIGNAL
10 37520-33G11-000 SWITCH ASSY, HORN
11 38850-3981 0-000 SOCKET SET
12 09407-14407-000 .CLAMP (L:145)
13 38852-39JOO-OOO .LABEL, POWER SOURCE TERMINAL

UR110EHL5 P74 350A

WIRING HARNESS
352A 352A (C-15) LOCK SET

REF NO. PART NO. DESCRIPTION QTY REMARKS

1 371 00-39JOO-OOO LOCK ASSY, STEERING

2 01550-0616A-OOO BOLT 2

El

UR110EHL5_P74_352A
LOCK SET
 401A 401A (D-2) FRAME

REF NO. PART NO. DESCRIPTION QTY REMARKS

411 00-39JOO-OOO FRAME

2 41180-39JOO-OOO BRACKE~CRANKCASE

3 41184-39JOO-OOO BUSH,CRANKCASEBRKT 2
4 41170-09J1 0-000 SPACER, CRANKCASE BRKT
5 09103-10449-000 BOLT (10X260)
6 08319-311 OA-000 NUT
7 41185-39JOO-OOO CUSHION, SWING STOP 2

II

UR11 OEHL5_P74_401 A
FRAME
405A 405A (D-3) BATTERY HOLDER

REF NO. PART NO. DESCRIPTION QTY REMARKS

41540-39JOO-OOO HOLDER, BATIERY

2 41560-39JOO-OOO BAND, BATIERY HOLDER
3 41566-39JOO-OOO COVER, BATIERY 1
4 01550-0612A-OOO BOLT 3
5 01550-0850A-OOO BOLT

II

UR11 OEHL5_P74_405A
BATIERY HOLDER
407A 407A (D-4) STAND

REF NO. PART NO. DESCRIPTION QTY REMARKS

421 00-39JOO-OOO STAND, CENTER

2 42211-39JOO-OOO SHAFT, CENTER STAND
3 08322-011 OA-000 WASHER
4 04111-3020A-OOO PIN
5 42251-32GOO-OOO BOLT, CENTER STAND SPRING
6 09443-17026-000 SPRING
7 42272-09JOO-OOO CUSHION, CENTER STAND
8 4231 0-39JOO-OOO STAND, PROP
9 42421-33G20-000 SPRING, PROP STAND
10 42411-33G10-000 BOLT, PROP STAND
11 64147-33G1 0-000 NUT

UR11 OEHL5_P74_407A
STAND
417A 417A {D-5) PILLION FOOTREST

REF NO. PART NO. DESCRIPTION QTY REMARKS

4361 0-28GOO-OOO BAR, PILLION FOOTREST, RH

2 4371 0-28GOO-OOO BAR, PILLION FOOTREST, LH
3 43612-33G01-000 RUBBER, PILLION FOOTREST 2
4 43631-09GOO-OOO WASHER, PILLION FOOTREST 2
RUBBER
5 09200-06057-000 PIN 2
6 04111-2515A-OOO PIN 2
7 43600-3981 0-000 TUBE SET,RR FOOTREST SIDE 43600-39JOO-OOO
8 01550-0816B-OOO .BOLT 2

UR110EHL5_P74_417A
PILLION FOOTREST
420A 420A (D-6) FUEL TANK

441 00-39JOO-OOO TANK ASSY, FUEL

2-1 44200-33G51-000 CAPASSY FUEL TANK FILLER
I 1
2-2 44200-33G60-000 CAPASSY FUEL TANK FILLER
I 1
3 13719-84150-000 CUSHION, FUEL TANK UPPER 2
4 63191-25COO-OOO CUSHION, FUEL TANK 6
5 44281-43EOO-OOO CUSHION, FUEL TANK REAR 1
6 44261-33G 10-000 RUBBER FUEL TANK INLET
I 1
7 44423-39JOO-OOO HOSE, FUEL DRAIN 1

FU~L
8 3481 0-39JOO-OOO GAUGE ASSY FUEL
PACKING LEVEL SENDER
9 34825-33G70-000 ILEVEL GAUGE
10 01550-0612A-OOO BOLT 4

UR110EHL5
FUEL TANK_P74_420A
421A 421A (D-7) FUEL COCK

REF NO. PART NO. DESCRIPTION QTY REMARKS

5 44300-39JOO-OOO COCK ASSY, FUEL

7
2 09111-06109-000 BOLT (6X14.8}
10
cd • 3 08316-1 006A-OOO NUT

3~6 8 4 44322-33G50-000 FILTER, FUEL

'
5 44421-39JOO-OOO HOSE, FUEL TANK & COCK

lo (_OJ
6
7
44422-39JOO-OOO
09401-11407-000
HOSE, FUEL COCK & CARB
CLIP

2~ L-~1 8
9
44425-39JOO-OOO
44426-39JOO-OOO
HOSE, VACUUM
HOSE, PROTECTOR
t]---4o 10 09401-09L03-000 CLIP 3

UR110EHL5_P74_421A
FUEL COCK
 435A 435A (D-8) FRONT LEG SHIELD

REF NO. PART NO. DESCRIPTION QTY REMARKS

2 1-1 48111-39JOO-YD8 SHIELD, LEG FRONT (SILVER)

1-2 48111-39JOO-YPA SHIELD, LEG FRONT (WHITE)
1-3 48111-39JOO-YSF SHIELD, LEG FRONT (BLUE)
1-4 48111-39JOO-YVB SHIELD, LEG FRONT (BLACK)
1-5 48111-39JOO-YVZ SHIELD, LEG FRONT (RED)
2-1 48151-39JOO-YD8 SHIEDL, LEG FR SIDE RH
(SILVER)
2-2 48151-39JOO-YPA SHIEDL, LEG FR SIDE RH

~ (WHITE)

,. 2-3
2-4
48151-39JOO-YSF
48151-39JOO-YVB
SHIEDL, LEG FR SIDE RH (BLUE)
SHIEDL, LEG FR SIDE RH
(BLACK)

II
2-5 48151-39JOO-YVZ SHIEDL, LEG FR SIDE RH (RED)
14
3-1 48161-39JOO-YD8 SHIEDL, LEG FR SIDE LH
J.
(SILVER)

7
fl
5
3-2

3-3
3-4
48161-39JOO-YPA

48161-39JOO-YSF
48161-39JOO-YVB
SHIEDL, LEG FR SIDE LH
(WHITE)
SHIEDL, LEG FR SIDE LH (BLUE)
SHIEDL, LEG FR SIDE LH

~
6 8 (BLACK)
I 3-5 48161-39JOO-YVZ SHIEDL, LEG FR SIDE LH (RED)
[@M~Mc:illl
4 48211-39JOO-OOO SHIELD, LEG FR UPPER RH
5 48221-39JOO-OOO SHIELD, LEG FR UPPER LH
6-1 68645-39JOO-AYN TAPE, FRONT LEG SHIELD FORYD8
6-2 68645-39JOO-AYP TAPE, FRONT LEG SHIELD FORYPA
6-3 68645-39JOO-AYQ TAPE, FRONT LEG SHIELD FORYSF
6-4 68645-39JOO-AYM TAPE, FRONT LEG SHIELD FORYVB

~ 6-5
7
68645-39JOO-AYR
68111-34JOO-OOO
TAPE, FRONT LEG SHIELD
EMBLEM, "S" 1
FORYVZ

8-1 68641-39JOO-YD8 EMBLEM, "SUZUKI" 2 FOR YSF,YVB,YVZ

UR11 OEHL5_P74_435A
FRONT LEG SHIELD 8-2 68641-39J00-17U EMBLEM, "SUZUKI" 2 FORYD8,YPA
435A 435A (D-9) FRONT LEG SHIELD

REF NO. PART NO. DESCRIPTION QTY REMARKS

2 9 48112-33G51-000 SCREW, LEG FRONT 2

10 09160-06079-000 WASHER {6.5X16X1.2) 2
11 03541-0516A-OOO SCREW 2
12 09409-08L09-000 CLIP 2
13 03541-0516A-OOO SCREW 6
14 09148-05060-000 NUT 2
15 09320-08018-000 CUSHION 2

a
6

UR110EHL5_P74_435A
FRONT LEG SHIELD
 438A 438A (D-10) SIDE LEG SHIELD

REF NO. PART NO. DESCRIPTION QTY REMARKS

48171-39JOO-OOO SHIELD, LEG RR SIDE RH

2 48181-39JOO-OOO SHIELD, LEG RR SIDE LH 1
3 48182-33G50-000 CUSHION, LEG SIDE N0.2 3
4 03541-0516B-OOO SCREW 2
5 09148-05060-000 NUT 2
6 09409-06L07-000 CLIP 2
7 48138-39JOO-OOO SHIELD, LEG LOWER
8 01550-0612A-OOO BOLT 2
9 09148-05060-000 NUT 2
10 09111-061 09-000 BOLT (6X14.8) 2
11 4821 0-39JOO-OOO BRACKET COMP,LEG RR SIDE,R NOT ILLUSTRATED
12 48220-39JOO-OOO BRACKET COMP,LEG RR SIDE,L NOT JLLUSTRATED

I
13 01550-0612A-OOO BOLT 2
14 09139-06165-000 SCREW (6X16) 2

I
&r-4o

UR11 OEHL5_P74_438A
SIDE LEG SHIELD
440A 440A (D-11) REAR LEG SHIELD

REF NO. PART NO. DESCRIPTION QTY REMARKS

¢If 2
48121-39JOO-OOO
09111-06072-000
SHIELD, LEG REAR
BOLT (6X17.8) 2
3 09111-06102-000 BOLT (6X14.8) 2
4 48125-39JOO-OOO LID, MAINTENANCE 1
6
5 09148-05060-000 NUT 4
6 92111-39JOO-OOO COVER, LEG SHIELD 1
7 92170-39JOO-OOO HOOK ASSY, LEG COVER
8 92178-39J10-000 SCREW, LEG COVER HOOK 2
9 09136-06004-000 SCREW (6X12)
10 03541-0516B-OOO SCREW 6

UR11 OEHL5_P74_440A
REAR LEG SHIELD
 445A 445A (D-12) FRAME COVER

REF NO. PART NO. DESCRIPTION QTY REMARKS

1-1 47111-39JOO-YD8 COVER, FRAME RH (SILVER)

1-2 47111-39JOO-YPA COVER, FRAME RH (WHITE)
1-3 47111-39JOO-YSF COVER, FRAME RH (BLUE)
1-4 47111-39JOO-YVB COVER, FRAME RH (BLACK)
1-5 47111-39JOO-YVZ COVER, FRAME RH (RED)
2-1 47211-39JOO-YD8 COVER, FRAME LH (SILVER)
2-2 47211-39JOO-YPA COVER, FRAME LH (WHITE)
2-3 47211-39JOO-YSF COVER, FRAME LH (BLUE)
2-4 47211-39JOO-YVB COVER, FRAME LH (BLACK)
2-5 47211-39JOO-YVZ COVER, FRAME LH (RED)
3-1 47311-39JOO-YD8 COVER, FRAME CTR (SILVER)
3-2 47311-39JOO-YPA COVER, FRAME CTR (WHITE}

II
3-3 47311-39JOO-YSF COVER, FRAME CTR (BLUE)
3-4 47311-39JOO-YVB COVER, FRAME CTR (BLACK)
3-5 47311-39JOO-YVZ COVER, FRAME CTR (RED)
4-1 68135-39JOO-AYH TAPE, FRAME COVER RH FORYD8
4-2 68135-39JOO-AYJ TAPE, FRAME COVER RH FORYPA
4-3 68135-39JOO-AYK TAPE, FRAME COVER RH FORYSF
4-4 68135-39JOO-AX9 TAPE, FRAME COVER RH FORYVB
4
I 4-5 68135-39JOO-AYL TAPE, FRAME COVER RH FORYVZ
~~ 5-1 68145-39JOO-AYH TAPE, FRAME COVER LH FORYD8

5
5-2 68145-39JOO-AYJ TAPE, FRAME COVER LH FORYPA

~~
5-3 68145-39JOO-AYK TAPE, FRAME COVER LH FORYSF
5-4 68145-39JOO-AX9 TAPE, FRAME COVER LH FORYVB
5-5 68145-39JOO-AYL TAPE, FRAME COVER LH FORYVZ
17

~
I 6-1 68131-33G90-YD8 EMBLEM, SUZUKI (SILVER) FOR YSF,YVB,YVZ
~~~) 6-2 68131-33G90-17U EMBLEM, SUZUKI (GRAY) FORYD8,YPA
7 47121-39JOO-OOO COVER, FRAME FRONT

UR11 OEHL5_P74_445A
FRAME COVER
445A 445A (D-13) FRAME COVER

REF NO. PART NO. DESCRIPTION QTY REMARKS

8 09148-05060-000 NUT 4
9 09148-05060-000 NUT 4
10 03541-0512A-OOO SCREW 2
11 03541-0516A-OOO SCREW 2
12 03541-0516A-OOO SCREW 2
13 03541-0516A-OOO SCREW 2
14 09148-05060-000 NUT 2
15 09409-06L07-000 CLIP 2
16 09409-06L07 -000 CLIP 2
17 68136-39JOO-OOO EMBLEM, FRAME COVER

II

~~~]

UR11 OEHL5_P74_445A
FRAME COVER
456A 456A (D-14) HELMET BOX

REF NO. PART NO. DESCRIPTION QTY REMARKS

92211-39JOO-OOO BOX, HELMET

2 03541-0512B-OOO SCREW 2
3 03541-0512B-OOO SCREW 2
4 92212-39JOO-OOO COVER, HELMET BOX REAR
5 09111-06102-000 BOLT (6X14.8) 3
6 92214-33G50-000 WASHER, HELMET BOX 2
7 92223-33800-000 CAP, HELMET BOX CENTER BOLT 2
8 07130-0612A-OOO BOLT 1
®---9 9 09320-08018-000 CUSHION
10 09280-63003-000 0 RING (D:3.5,1D:62.6)
11 96511-39JOO-OOO BAG, TOOL
12 96513-23JOO-OOO SPANNER, OPEN (10X12)
13 96513-23J1 0-000 SPANNER, OPEN (14X17)
14 96412-33G60-000 DRIVER, (+) (-)
15 96414-33G60-000 SPANNER, BOX (16)
16 47446-30HOO-OOO CUSHION, TOOL HOLDER
17 94990-28G10-000 SET, FIRST AID

UR110EHL5_P74_456A
HELMET BOX
460A 460A (D-15) FRONT FENDER

REF NO. PART NO. DESCRIPTION QTY REMARKS

3 1-1 53111-39JOO-YD8 FENDER, FRONT (SILVER)

t---0 . 1-2
1-3
53111-39JOO-YPA
53111-39JOO-YSF
FENDER, FRONT (WHITE)
FENDER, FRONT (BLUE)

1 ~ 1-4
1-5
53111-39JOO-YVB
53111-39JOO-YVZ
FENDER, FRONT (BLACK)
FENDER, FRONT (RED)

~
2 09113-06010-000 BOLT(6X16) 3
3 53120-39JOO-OOO BRACE, FRONT FENDER
1- 4 01550-0612A-OOO BOLT 2

II

UR11 OEHL5_P74_460A
FRONT FENDER
462A 462A (E-2) HANDLEBAR
REF NO. PART NO. DESCRIPTION QTY REMARKS

5611 0-39JOO-OOO HANDLEBAR

2 51358-09GOO-OOO STOPPER, HANDLEBAR
3 09103-10126-000 BOLT (10X48)
4 08319-3110A-OOO NUT
5 56500-39JOO-OOO MIRROR ASSY, REAR VIEW RH
6 56533-33G60-000 .BOLT, REAR VIEW MIRROR RH
7 56600-39JOO-OOO MIRROR ASSY, REAR VIEW LH
8 56533-33G60-000 .BOLT, REAR VIEW MIRROR LH
9 5811 0-39JOO-OOO CABLE, FRONT BRAKE
10 58620-39JOO-OOO GUIDE, CABLE
11 02112-0612A-OOO SCREW
12 58300-39JOO-OOO CABLE ASSY, THROTILE
13 09407-25L02-000 CLAMP (L:235)
14 5841 0-39JOO-OOO CABLE, STARTER
15 5851 0-39JOO-OOO CABLE, REAR BRAKE
16 58562-09JOO-OOO SPRING, REAR BRAKE CABLE
17 09209-11002-000 PIN (11X18) 2

r~
18 09150-06001-000 NUT 2

10 19 58575-39JOO-OOO PLATE, REAR BRAKE CABLE 1

11 5
20 01547-0610A-OOO BOLT
21 58577-39J 10-000 CLAMP, RR BK CABLE FRONT
4

21

tg ~ '~l
20

~ ~
16

UR11 OEHL5_P74_462A
HANDLEBAR
463A 463A (E-3) HANDLE COVER

REF NO. PART NO. DESCRIPTION QTY REMARKS

1-1 56311-39JOO-YD8 COVER, HANDLE FRONT (SILVER)

1-2 56311-39JOO-YPA COVER, HANDLE FRONT (WHITE)
1-3 56311-39JOO-YSF COVER, HANDLE FRONT (BLUE)
1-4 56311-39JOO-YVB COVER, HANDLE FRONT (BLACK)
1-5 56311-39JOO-YVZ COVER, HANDLE FRONT (RED)
2 56321-39JOO-OOO COVER, HANDLE REAR
3 02142-0512B-OOO SCREW 2
4 03511-0516A-OOO SCREW 2
5 03541-0416B-OOO SCREW 4

UR11 OEHL5_P74_463A
HANDLE COVER
 ,
467A 467A (E-4) HANDLE LEVER

REF NO. PART NO. DESCRIPTION QTY REMARKS

57110-33G51-000 GRIP, THROTILE

13 2 571 00-33G51-000 CASE ASSY, THROTILE
3 02112-0520A-OOO SCREW

~
4 09136-05040-000 SCREW (5X16)
5 57300-39JOO-OOO LEVER ASSY, FR BRAKE

~
6 57311-39JOO-OOO .HOLDER, BRAKE LEVER RH
7 57421-39JOO-OOO .LEVER, BRAKE RH
8 57431-39JOO-OOO .BOLT, BRAKE LEVER PIVOT
9 08319-21 05A-OOO .NUT
10 01547-0620B-OOO .BOLT
11 37760-39JOO-OOO SWITCH ASSY, BRAKE
23
12 57211-33G51-000 GRIP, LH

II
5 13 57500-39JOO-OOO LEVER ASSY, RR BRAKE
14 57511-39JOO-OOO .HOLDER, BRAKE LEVER LH
15 57621-39JOO-OOO .LEVER, BRAKE LH

11 r 16
17
57431-39JOO-OOO
08319-2105A-OOO
.BOLT, BRAKE LEVER PIVOT
.NUT

~/~
18 01547-0620B-OOO .BOLT
19 57520-39J 10-000 .LEVER, BRAKE LEVER STOPPER
0 ~
57523-33G50-000 .SPRING, BRAKE LEVER STOPPER
~
20
®---B
6 . 21 57524-33G50-000 .PIN, BRAKE LEVER STOPPER
22 08332-11 03A-OOO .ERING
23 37760-39JOO-OOO SWITCH ASSY, BRAKE

UR110EHL5_P74_467A
HANDLE LEVER
474A 474A (E-5) REAR FENDER

REF NO. PART NO. DESCRIPTION QTY REMARKS

1 63111-39JOO-OOO FENDER, REAR UPPER

2 01550-0612A-OOO BOLT 4
3 09148-05060-000 NUT 2
4 63112-39JOO-OOO FENDER, REAR LOWER 1
5 09111-06102-000 BOLT (6X14.8) 3
6 6321 0-39JOO-OOO BRACE, REAR FENDER LOWER
7 63411-39JOO-OOO MUDGUARD, REAR FENDER
8 03541-0516A-OOO SCREW 2
9 09160-06079-000 WASHER (6.5X16X1.2) 2

4
10 63113-39JOO-OOO MUDGUARD, REAR FENDER LOWER

II

UR110EHL5_P74_474A
REAR FENDER
 496A 496A (E-6) LABEL

REF NO. PART NO. DESCRIPTION QTY REMARKS

1 4 1 68319-39JOO-OOO LABEL, GENERAL WARNING

I I 2 68911-39JOO-OOO LABEL, LOADING CAPACITY
3 68332-39JOO-OOO LABEL, TIRE INFORMATION
4 99011-39J50-74A MANUAL, OWNER'S

W-=

UR110EHL5_P74_496A
LABEL
505A 505A (E-7) SEAT

REF NO. PART NO. DESCRIPTION QTY REMARKS

12 451 00-39JOO-AV1 SEAT ASSY (BLACK/GRAY)

2 45148-20G90-000 .CUSHION, SEAT MOUNT 2
3 45215-39JOO-OOO PIN, SEAT HINGE 1
4 04111-2015A-OOO PIN
5 45211-39JOO-OOO MOLDING, SEAT
6 45700-33G40-000 BRACKET, STRIKER SUPPORT
7 02112-0610A-OOO SCREW 2
8 45280-39JOO-OOO CABLE, SEAT LOCK
9 09407-25L02-000 CLAMP (L:235)
10 36990-70F20-000 CLAMP
11 09407-15L01-000 CLAMP (L:170)
12 46211-39J00-13L HANDLE, PILLION RIDER

II
13 01550-0825A-OOO BOLT 4

UR110EHL5_P74_505A
SEAT
521A 521A (E-8) FRONT FORK DAMPER

REF NO. PART NO. DESCRIPTION QTY REMARKS

1 511 03-39JOO-OOO DAMPER ASSY, FRONT FORK RH

2 51130-39JOO-OOO .TUBE, OUTER RH
3 51153-39JOO-OOO .SEAL, OIL
4 51156-39JOO-OOO .RING, SNAP
5 51158-39JOO-OOO .BUSH, GUIDE
6 51167 -39JOO-OOO .WASHER
7 51173-39JOO-OOO .SEAL, DUST

~725 8 51117 -39JOO-OOO .ORING

~22 9 51147-39JOO-OOO .BOLT

~321 10 51148-39JOO-OOO .GASKET

11 5111 0-39JOO-OOO .TUBE, INNER
~24 12 51146-39JOO-OOO .CYLINDER
{J--t3 31 13 51195-39JOO-OOO .OIL LOCK PIECE

~23 14
15
51196-39JOO-OOO
51177-39JOO-OOO
.RING, PISTON
.SPRING, REBOUND
~ 16 51171-39JOO-OOO .SPRING, FRONT
17 51351-39JOO-OOO .BOLT
18 51189-39JOO-OOO .CAP

UR11 OEHL5_P74_521 A
FRONT FORK DAMPER
521A 521A (E-9) FRONT FORK DAMPER

REF NO. PART NO. DESCRIPTION QTY REMARKS

19 511 04-39JOO-OOO DAMPER ASSY, FRONT FORK LH

20 51140-39JOO-OOO .TUBE, OUTER LH
21 51153-39JOO-OOO .SEAL, OIL
22 51156-39JOO-OOO .RING, SNAP
23 51158-39JOO-OOO .BUSH, GUIDE
24 51167-39JOO-OOO .WASHER
25 51173-39JOO-OOO .SEAL, DUST
~725 26 51117 -39JOO-OOO .ORING

~22 27 51147-39JOO-OOO .BOLT

28 51148-39JOO-OOO .GASKET
@---321
29 51110-39JOO-OOO .TUBE, INNER
O-s24
30 51146-39JOO-OOO .CYLINDER
~331

II
31 51195-39JOO-OOO .OIL LOCK PIECE

~23 32 51196-39JOO-OOO .RING, PISTON

33 51177-39JOO-OOO .SPRING, REBOUND
~ 34 51171-39JOO-OOO .SPRING, FRONT
35 51351-39JOO-OOO .BOLT
36 51189-39JOO-OOO .CAP

UR11 OEHL5_P74_521 A
FRONT FORK DAMPER
 524A 524A (E-10) STEERING STEM

REF NO. PART NO. DESCRIPTION QTY REMARKS

5141 0-39JOO-OOO BRACKET, UNDER

~3
2 51622-41 H00-000 .RACE, STEERING OUTER LOWER
~1
3 51434-39JOO-OOO BOLT 4
2
4 51435-39JOO-OOO WASHER 4
5 51612-41 H01-000 RACE, STEERING INNER LOWER
6 51611-41H01-000 RACE, STEERING INNER UPPER
7 51643-06001-000 DUST SEAL, UPPER
8 06111-06004-000 BALL 28 LOWER
9 51621-41 H00-000 RACE, STEERING OUTER, UPPER
10 06111-06004-000 BALL 23 UPPER
11 09166-24001-000 WASHER (24.5X34X2.3) 1
12 51631-05000-000 NUT, STEERING STEM 1
14

I
13 51631-05000-000 NUT, STEERING STEM LOCK

8 14
15
51571-39JOO-OOO
51572-39JOO-OOO
BOOT, FRONT FORK COVER RH
BOOT, FRONT FORK COVER LH

UR110EHL5 P74 524A

STEERING STEM-
530A 530A (E-11) FRONT WHEEL

REF NO. PART NO. DESCRIPTION QTY REMARKS

54110-39J10-13L HUB, FRONT WHEEL (SILVER)

2 55310-39J10-13L RIM, WHEEL (1 OX2.15) (SILVER)
3 64147-33G10-000 NUT 4
4 08113-63007-000 BEARING RH
5 08123-62007-000 BEARING LH
6 09180-10071-000 SPACER (10.4X15X48)
7 54711-11 F00-000 AXLE, FRONT
8 54841-23JOO-OOO OIL SEAL (17X38X5)
9 54740-23JOO-OOO SPACER, FRONT AXLE RH
10 08319-311 OA-000 NUT
11 5421 0-39J00-13L PANEL, FRONT BRAKE ANCHOR
(SILVER)

I
12 5441 0-33G30-000 SHOE, FRONT BRAKE 2
13 54451-28G20-000 LEVER, FRONT BRAKE CAM
~8
14 09448-30009-A05 SPRING
15 54611-39JOO-OOO GEAR, SPEEDOMETER (17T)
16 54621-39J10-000 PINION, SPEEDOMETER (9T}
17 54632-22JOO-OOO BUSHING, SPDOM PINION OUTER NEW PN = 54632-22J10-000

~}Jt<b
18 54424-28GOO-OOO SPRING, BRAKE SHOE 2
19 01550-0635A-OOO BOLT
20 09160-14055-000 WASHER (14.5X22X1.6)

24 ~¥~iJ 21
22
23
54443-33GOO-OOO
54267-33GOO-OOO
08316-1 006A-OOO
SEAL, FR BRAKE CAM DUST
SEAL, FR BRAKE PANEL OIL
NUT
23 ~ 24 54441-39JOO-OOO CAM, FRONT BRAKE
~ 25 5511 0-39JOO-OOO TIRE (90/100-10 53J) NOT SERVICEABLE PART
26 43130-41 D90-000 VALVE ASSY, WHEEL RIM

~
UR110EHL5_P74_530A
FRONT WHEEL
 545A 545A (E-12) REAR SHOCK ABSORBER

REF NO. PART NO. DESCRIPTION QTY REMARKS

1 62100-39JOO-OOO ABSORBER ASSY, REAR SHOCK

2 01550-0835A-OOO BOLT LOWER
3 01550-1 040B-OOO BOLT UPPER

II

UR110EHL5_P74_545A
REAR SHOCK ABSORBER
550A 550A (E-13) REAR WHEEL

REF NO. PART NO. DESCRIPTION QTY REMARKS

12
1 6411 0-39J10-13L HUB, REAR WHEEL (SILVER)
2 55310-39J10-13L RIM, WHEEL (10X2.15) (SILVER)
3 64147-33G1 0-000 NUT 4
4 64400-33G20-000 SHOE SET, REAR BRAKE
5 54424-28GOO-OOO .SPRING, BRAKE SHOE 2
6 64441-09J20-000 CAM, REAR BRAKE
7 64451-09J 10-000 LEVER, REAR BRAKE CAM
8 091 00-06139-000 BOLT (6X31)
9 08316-1 006A-OOO NUT
10 64723-39JOO-OOO WASHER
11 08319-2116A-OOO NUT
12 5511 0-39JOO-OOO TIRE (90/1 00-10 53J) NOT SERVICEABLE PART

I
13 43130-41 090-000 VALVE ASSY, WHEEL RIM

UR110EHL5_P74_550A
REAR WHEEL
 940A 940A (E-14) FRONT LICENSE PLATE SET (OPTIONAL)

REF NO. PART NO. DESCRIPTION QTY REMARKS

48100-39810-000 PLATE SET, FRONT LICENSE OPT

UR11 OEHL5_P74_940A
FRONT LICENSE PLATE SET (OPTIONAL)
954A 954A (E-15) FRONT BOX SET (OPTIONAL)

REF NO. PART NO. DESCRIPTION QTY REMARKS

92012-39JOO-OOO BOX SET, FRONT OPT

II

UR11 OEHL5_P74_954A
FRONT BOX SET (OPTIONAL)
PARTS NUMBER INDEX
 PART NO. [Link].-REFNO. PART NO. [Link].-REFNO. PART NO. [Link].-REFNO.
02112-0416A-OOO 339A - 5 421A - 3 240A - 9 09401-11407-000 421A - 7 11384-39JOO-OOO 112A - 13
02112-0510A-OOO 102A - 7 530A - 23 09166-24001-000 524A - 11 09401-12305-000 155A - 7 11385-39JOO-OOO 112A 15
00000 02112-Q516A-QOO 330A 8 550A - 9 09168-Q6004-()()() 127A - 5 09401-14301-000 155A - 12 11386-39JOO-OOO 112A 14
12 08316-1008A-OOO 103A - 6 09168-Q8016-000 108A - 14 09401-15101-000 189A - 9 11430-39810-()()() 108A 24
02112-Q520A-OOO 467A 3 08316-1010A-OOO 108A - 13 16 09402-46209-000 112A - 12 11482-39JOO-OOO 112A - 2
01421-0616A-OOO 163A 4 02112-Q610A-QOO 505A - 7 303A - 7 18 09404-06429-000 130A - 42 11484-39JOO-OOO 108A - 25
01547-0610A-OOO 462A 20 02112-0612A-QOO 126A 5 08319-21 OSA-000 467A - 9 20 339A - 8 11611-39JOO-OOO 108A - 12
01547-0612A-OOO 112A 9 312A 3 17 22 09407-14407-000 350A - 12 11971-Q9JOO-OOO 108A - 28
303A 5 350A 5 08319-2116A-OOO 550A - 11 0918Q-06256-000 163A 8 09407-15L01-000 505A - 11 1210Q-39JOQ-050 120A - 9
- 6 462A 11 08319-3110A-OOO 401A - 6 091 SQ-1 0071-000 530A 6 09407-25L02-000 462A - 13 12111-39JOO-QFO 120A - 1
02112-3406A-OOO 301A - 6 462A - 4 09181-12167-000 211A 8 505A - 9 12140-39JOQ-OOO 120A - 2
189A 10 02112-3516A-OOO 301A 7 530A 10 9 09409-06L07-000 181A - 13 12151-39JOQ-OOO 120A - 3
312A - 9 02122-0616A-OOO 211A 16 08322-011 OA-000 407A 3 09200-06057-000 417A 5 438A - 6 1220Q-39JOO-OOO 120A - 5
01547-Q620A-OOO 303A - 4 17 08331-31149-()()() 240A - 5 09206-{)8008-() 102A 8 445A - 15 1271Q-39JOO-OOO 126A - 1
01547-06208-000 127A 8 02142-05128-000 463A - 3 08331-31249-()()() 211A - 11 108A 10 16 12725-20000-000 126A - 18
467A 10 02142-0612A-OOO 330A - 9 12 26 09409-08L09-000 435A - 12 12741-39JOQ-OOO 126A - 19
18 13 08332-11 03A-OOO 467A 22 112A 3 09443-17026-000 407A 6 1276Q-23JOO-OOO 127A - 1
01547-0625A-000 103A 12 03511-0516A-OOO 463A - 4 08332-1105A-OOO 170A - 4 126A 24 09448-30009-AOS 530A - 14 12771-39JOO-OOO 127A - 2
108A 11 03541-0416A-OOO 335A - 7 08341-31 039-000 303A - 8 09206-1 0014-000 108A 5 09471-12077-000 330A 8 12811-39JOQ-OOO 127A - 3
03541-04168-000 463A - 5 09206-1 0016-000 103A 5 09471-12128-000 339A - 3 1283Q-39J00-000 127A - 6
170A - 5 03541-0512A-OOO 445A - 10 09103-06247-000 127A - 4 107A - 4 09471-12216-000 333A - 4 12837-39JOQ-OOO 127A - 7
181A - 7 03541-05128-000 456A - 2 09103-06501-000 103A - 4 09209-11002-000 462A - 17 09471-12225-000 333A - 5 12840-39JOO-QOO 126A - 6
10 - 3 09103-10126-000 462A - 3 09261-05005-000 126A - 25 09471-12226-000 335A - 3 12842-39JOO-OOO 126A - 7
189A - 11 03541-0516A-OOO 181A - 8 091 03-1 0449-()()() 401A - 5 09262-12034-000 211A - 8 - 6 12843-27A7Q-OOO 126A - 8
- 4 11 09262-12035-000 211A - 7 339A - 4 12861-39JOO-QOO 126A - 9
108A - 27 330A 5 09262-15051-000 210A 18 09481-10001-000 350A - 2 12862-Q9J1Q-OOO 126A - 4
301A - 9 9 09262-20151-000 211A 6-1 09482-00645-000 103A - 7 12871-39JOO-OOO 126A - 10
01547-06358-000 112A - 7 339A 9 09262-20158-000 211A 5 09491-95008-000 130A - 32 12911-09JOO-OOO 126A - 11
01547-0655A-OOO 108A - 6 435A 11 5 - 6-2 09492-12012-000 130A - 33 12912-09JOO-OOO 126A - 12
01547-06608-000 112A - 17 13 5 09262-20171-000 211A - 6-3 12921-39JOO-OOO 126A - 13
01547-06708-000 112A - 5 445A 11 09111-06109-000 421A - 2 09262-22041-000 211A - 12 12931-09G2Q-OOO 126A - 14
01547-0680A-OOO 170A - 8 12 438A - 10 13 12932-09G1 Q-000 126A - 15
01547-0695A-OOO 108A - 7 13 09113-0601 o-ooo 460A - 2 09262-35093-000 120A - 6 10000 12933-09GOO-OOO 126A - 16
01550-0612A-OOO 181A - 2 474A - 8 09119-06120-()()() 102A - 6 09263-201 05-000 210A - 19 12950-39JOO-OOO 126A - 20
405A - 4 03541-05168-000 438A - 4 09136-05040-()()() 467A - 4 0928Q-1301 o-ooo 170A - 13 12954-39JOQ-OOO 126A - 21
420A - 10 440A - 10 09136-05051-000 333A - 7 0928Q-17003-000 108A - 29 1111Q-09J20-()()() 103A - 1 12955-33GOO-OOO 126A - 22
438A - 13 03541-0520A-OOO 155A - 14 09136-Q6004-()()() 440A - 9 0928Q-26009-000 103A 11 11141-09J5Q-OOO 103A 3 1311 Q-39JOO-OOO 103A - 8
- 8 04111-2015A-OOO 505A 4 09139-06165-000 438A - 14 0928Q-63003-000 456A 10 11170-09J80-()()() 102A 1 13129-23J00-000 103A 9
460A - 4 04111-2515A-OOO 417A - 6 09140-12039-000 210A - 23 09283-16L03-000 120A 7 11173-09J5Q-OOO 102A 2 13132-33G5Q-OOO 103A - 10
474A - 2 04111-3020A-OOO 407A - 4 240A - 8 09283-20069-000 211A - 3 11176-Q9JOQ-OOO 102A 3 13200-39JOQ-OOO 130A 1
01550-0616A-OOO 352A - 2 06111-{)6()()4-QOO 524A - 8 09148-05060-()()() 435A - 14 - 4 11177-Q9J50-()()() 102A - 4 13245-39JOO-QOO 130A - 3
01550-06168-000 163A - 10 10 438A - 5 09283-22L03-000 120A - 8 11191-27E3Q-OOO 102A - 5 13247-23J2Q-OOO 130A - 2
01550-0620A-OOO 155A - 17 07130-0612A-QOO 456A - 8 - 9 09283-27025-000 211A - 13 1121Q-09J40-QFO 107A - 1 13247-28GOO-OOO 130A - 41
01550-0635A-OOO 530A - 19 0811 o-62020-()()() 211A - 4 440A - 5 14 11241-09J50-()()() 107A - 2 13249-23.100-000 130A - 35
01550-0812A-OOO 108A - 15 - 5 445A - 09284-34003-000 210A - 12 11302-0981 o-ooo 108A - 1 13254-2001 Q-000 130A - 4
17 0811 o-62030-000 211A - 14 - 9 09289-05019-000 126A - 17 11315-39JOO-OOO 108A - 3 1326Q-23JOO-OOO 130A - 34
19 15 14 09320-07014-000 189A - 8 11316-39JOO-OOO 108A - 4 13267-09G2Q-OOO 130A - 6
21 08113-6001 o-ooo 211A - 7 474A - 3 09320-08018-000 435A - 15 11323-09JOO-OOO 108A - 8 13267-20000-000 130A - 7
23 08113-60020-()()() 126A - 2 09150-06001-000 462A - 18 456A - 9 11324-09JOO-OOO 108A 9 13268-09G2Q-OOO 130A - 8
01550-08168-000 417A 8 08113-6201 o-ooo 211A - 6 09160-06079-000 435A - 10 09320-08051-000 163A - 9 11325-o9JOO-OOO 108A - 2 13268-3501 Q-000 130A - 9
01550-0825A-OOO 505A - 13 08113-63007-000 530A - 4 474A - 9 09381-1 0004-000 103A - 2 11340-39J1 o-ooo 112A - 1 13278-28GOO-OOO 130A - 5
01550-0835A-OOO 545A - 2 08113-69050-()()() 126A 3 09160-06151-000 163A - 7 09381-13001-000 120A - 4 11346-39JOO-OOO 112A - 8 13278-29C5Q-OOO 130A - 10
01550-0850A-OOO 405A - 5 08123-62007-000 530A - 5 09160-14055-000 240A - 4 09381-24005-000 210A - 20 11347-39JOO-OOO 112A - 6 13278-47090-()()() 130A - 21
01550-1 0408z-OOO 163A - 5 08316-1005A-OOO 339A - 7 530A - 20 09401-06102-000 189A - 12 11380-39JOO-OOO 112A - 10 13291-2990Q-000 130A - 11
545A - 3 08316-1 OOOA-000 163A - 6 09164-12020-()()() 210A - 22 09401-09L03-000 421A - 10 11383-39JOO-OOO 112A - 11 13295-2990Q-000 130A - 12
PART NO. [Link].·REFNO. PART NO. [Link].-REFNO. PART NO. [Link].-REFNO.
13331-20000-000 130A - 13 17122-39JOO-OOO 181A - 4 26231-39JOO-OOO 240A - 7
13341-39JOO-OOO 130A - ::e 17123-{)9J00-000 181A - 5 263D0-39JOO-OOO 240A - 10 35970-28GOO-OOO 339A - 7
13370-39JOO-OOO 130A - 14 17124-39JOO-OOO 181A - 6 26314-33G1 [Link] 240A 11 50000
3661 0-39JOO-QOO 350A 1 421A - 8
13383-39JOO-OOO 130A - 38 17125-39JOO-OOO 181A - 12 27601-39J1 0{)()() 36990-70F20-000
210A 24 505A 10 421A - 9
13385-;39..100-000 130A - 15 1713().()9J1 0{)()() 181A - 9 371 ()()-39JOO-QOO 352A - 1 505A -
13387-20000-000 130A - 16 18450-33G1 0{)()() 189A - 1 3731 1-QOO 350A - 6 451 505A - 2 511 03-39JOO-QOO 521A - 1
13387-23JOO-OOO 130A - 17 18461-39JOO-OOO 189A - 2 37340-39J1 o-ooo 350A - 7 45211-39JOO-OOO 505A - 5 511 04-39JOO-OOO 521A - 19
13389-39JOO-OOO 130A - 18 1851 ().()9J1 0{)()() 189A - 3 30000 37420-33G30-000 350A - 8 45215-39JOO-OOO 505A - 3 5111 0-39JOO-QOO 521A - 11
13394-40020-QOO 130A - 26 18531-Q9J1 0{)()() 189A - 4 37510-33G30-000 350A - 9 45280-39JOO-OOO 505A - 8 -29
[Link] 130A - 19 18630-09J00-000 189A - 5 37520-33G11-QOO 350A - 10 45700-33G40-000 505A 6 51117-39JOO-QOO
- 521A - 8
13481-20000-000 130A - 23 18711-39JOO-OOO 189A 6 311 ()()-39J()()-OQ() 301A - 1 37760-39JOO-OOO 467A - 11 46211-39J00-13L 505A - 12 -26
13481-45HOO-QOO 130A - 24 18762-39JOO-OOO 189A 7 31130-32GOO-OOO 301A- 2 -23 47111-39JOO-YD8 51130-39JOO-QOO
445A 1-1 521A - 2
13487-20000-000 130A - 25 31135-19Doo-OOO 301A- 3 38500-33G63-000 350A 4 47111-39JOO-YPA 51140-39JOO-QOO
445A 1-2 521A - 2)
13548-23JOO-OOO 130A - a> 31156-32GOO-OOO 301A- 4 3861 0-25J1 o-ooo 335A - 8 47111-39JOO-YSF 445A - 1-3 51146-39JOO-QOO 521A - 12
13551-39JOO-OOO 130A - '31 31157-32GOO-OOO 301A - 5 38850-3981 o-ooo 350A - 11 47111-39JOO-YVB 445A - 1-4 -a>
13573-45H20-Q00 130A - 27 31370-32GOO-OOO 301A- 8 38852-39JOO-QOO 350A - 13 47111-39JOO-YVZ 445A - 1-5 51147-39JOO-OOO 521A - 9
13601-{)4168-000 130A - 28 31497-39JOO-OOO 303A- 1 47121-39JOO-OOO 445A 7
- -27
[Link] 130A - 2) 20000 31800-23JOO-OOO 312A- 1-1 47211-39JOO-YD8 445A - 2-1 51148-39JOO-QOO 521A - 10
13681-{)401 o-ooo 130A - 29 31800-23J10-Q00 312A- 1-2 47211-39JOO-YPA 445A - 2-2 -28
13683-39JOO-OOO 130A - :D 321 01-39JOO-OOO 303A- 2 47211-39JOO-YSF 445A - 2-3 51153-39JOO-QOO 521A - 3
13684-39JOO-OOO 130A - 31 21111-39J()()-()()Q 210A - 6 321 02-39JOO-OOO 303A- 3 445A - 2-4 21
13685-39JOO-OOO 130A - 40 21113-39J()()-()()Q 210A - 7 32800-39J30-000 312A- 2 47211-39JOO-YVZ 445A 2-5
- 51156-39JOO-OOO 521A 4
13698-40800-000 130A - 22 21120-39JOO-OOO 210A - 1 329D0-39JOO-OOO 312A- 4 40000 47311-39JOO-YD8 445A - 3-1 22
137()()-39J()()-OQ 155A - 1 21125-39JOO-OOO 210A - 2 3341 0-39JOO-OOO 312A- 5 47311-39JDO-YPA 445A 3-2
- 51158-39JOO-QOO 521A 5
13719-84150{)()() 42>A - 3 2121 [Link] 210A - 8 3351 [Link] 312A- 6 47311-39JOO-YSF 445A - 3-3
13740-39JOO-OOO 155A - 2 21220-41H10-000 210A - 21 33541-39JOO-OOO 312A- 7 47311-39JOO-YVB 445A - 3-4 51167-39JOO-OOO 521A - 6
13746-39JOO-OOO 155A - 3 21240-39JOO-OOO 210A - 9 33542-39JOO-OOO 312A- 8 4117().()9J1 o-ooo 401A 4
- 47311-39JOO-YVZ 445A - 3-5 -24
- 4 21243-39JOO-OOO 210A - 10 3361 0-39JOO-OOO 310A- 1-1 41180-39J00-000 401A 2
- 47446-30HOO-OOO 456A - 16 51171-39JOO-OOO 521A - 16
13780-39JOO-OOO 155A - 5 21245-33GOO-OOO 210A 11 3361 0-39J1 o-ooo 310A- 1-2 41184-39JOO-OOO 401A -
3 48100-3981 o-ooo 940A - 1 -34
13826-33G70-Q00 155A - 11 21248-39JOO-OOO 210A 13 33624-28GOO-OOO 350A- 3 401A -
7 48111-39JOO-YD8 435A - 1-1
13850-39JOO-OOO 155A - 6 21249-33GOO-OOO 210A - 14 33652-39JOO-OOO .310A- 2 1 48111-39JOO- 435A - 1-2
13854-39JOO-OOO 155A - 9 21431-39JOO-OOO 210A - 3 341 00-39JOO-OOO 3:nA- 1 41560-39JOO-OOO 405A - 2 48111-39JOO-YSF 435A - 1-3
13878-10000-000 155A - 8 21471-Q9JOO-OOO 210A - 15 3411 0-39JOO-OOO 3:nA- 2 41566-39JOO-OOO 405A - 3 48111-39JOO-YVB 435A - 1-4
13881-39JOO-OOO 155A - 10 21481-39JOO-OOO 210A - 4 - 4 421 ()()-39J()()-OQ() 407A - 48111-39JOO-YVZ 435A - 1-5
13891-39JOO-OOO 155A - 15 21501-39JOO-OOO 210A 16 34111-39J()()-()()Q 330A - 2 42211-39JOO-OOO 407A - 2 48112-33G51-QOO 435A - 9
13892-39JOO-OOO 155A - 13 21518-40JOO-OOO 210A - 17 [Link] 330A - 3 42251-32GOO-OOO 407A - 5 48121-39JOO-OOO 440A - 1
13893-39JOO-OOO 155A - 16 21650-39J30-000 210A - 5 [Link] 3:nA - 4 42272-Q9JOO-OOO 407A - 7 48125-39JOO-OOO 440A - 4 - 31
14181-33G30-000 163A - 1 24131-33G51-ooo 211A - 1 34173-39JOO-QOO 330A 5 4231 0-39JOO-QOO 407A - 8 48138-39JOO-OOO 51196-39JOO-OOO
438A - 7 521A - 14
1431 0-39JOO-OOO 163A - 2 1-1 34186-39JOO-OOO 330A 6 42411-33G10-Q00 407A - 10 48151-39JOO-YD8 435A - 2-1 -32
14781-39JOO-OOO 163A - 3 24131-33G60-ooo 211A - 2 34383-39JOO-OOO 330A - 7 42421-33G20-000 407A - 9 51-39JOO-YPA 51351-39JOO-OOO 521A - 17
- 2-2
16331-39JOO-OOO 170A 1 1-2 3481 0-39JOO-OOO 42>A - 8 43130-41090-ooo 530A - 26 4815 2-3
16400-39JOO-OOO 170A 2 24141-39J10-000 211A - 9 34825-33G70-Q00 42>A 9 550A - 13 48151-39JOO-YVB 2-4 51358-00GOO-OOO 462A - 2
16421-20EOO-OOO 170A - 3 10 3491 0-39JOO-OOO 330A - 6 436()()-3981 o-ooo 417A - 7 48151-39JOO-YVZ 2-5 5141 0-39JOO-OOO 524A - 1
16422-Q9JOO-QOO 170A 6 24150-39JOO-QOO 211A - 2-1 10 4361 0-28GOO-OOO 417A - 1 48161-39JOO-YD8 3-1 51434-39JOO-OOO 524A - 3
16423-Q9JOO-OOO 170A - 7 3-1 34930-39JOO-OOO 330A - 7 43612-33G01-QOO 417A - 3 48161-39JOO-YPA 435A - 3-2 51435-39JOO-OOO 524A - 4
16510-39JOO-OOO . 170A - 9 24150-39J20-000 211A - 2-2 11 43631-QOOOO-OOO 417A - 4 48161-39JOO-YSF 435A - 3-3 51571
16512-Q9J1 o-ooo 170A - 10 - 3-2 351 00-39JOO-OOO 333A - 1 4371 0-28GOO-OOO 417A 2 48161-39JOO-YVB 435A - 3-4 51572-39JOO-OOO 524A - 15
16518-Q9JOO-OOO 170A - 11 24371-39J1 o-ooo 211A - 10 35171-39JOO-QOO 333A 2 441 00-39JOO-OOO 42>A 1 48161-39JOO-YVZ 435A - 3-5 51611-41HOH>OO 524A - 6
16519-Q9J1 o-ooo 170A - 12 11 35174-25JOO-OOO 333A. 3 44200-33G51-QOO 42>A 2-1 48171-39JOO-OOO 438A - 1 51612-41H01-QOO 524A - 5
16520-09JOO-OOO 170A - 15 24751-07900-000 211A - 15 35194-23FOO-OOO 333A. - 6 44200-33G60-Q00 42>A - 2-2 48181-39JOO-OOO 438A - 2 51621-41HOO-OOO 524A - 9
16523-Q9JOO-OOO 170A - 16 16 35601-39JOO-OOO 335A - 1 44261-33G1 o-ooo 42>A - 6 [Link] 438A - 3 51622-41HOO-OOO 524A - 2
16525-09JOO-OOO 170A - 18 262()()-39J00-000 240A 6 35602-39JOO-OOO 335A - 4 44281-43EOO-QOO 42>A - 5 4821 0-39JOO-OOO 438A - 11 51631-osooo-ooo 524A - 12
16526-09JOO-OOO 170A - 17 26210-39JOO-OOO 240A 1 35618-39JOO-OOO 335A - 2 443()()-39JOO-QOO 421A - 1 48211-39JOO-OOO 435A - 4 - 13
1711().()9J00-000 181A - 1 35638-39JOO-OOO 335A - 5 [Link]
26212-46GOO-OOO 240A - 2 421A - 4 48220-39JOO-QOO 438A - 12 51643-Q6001-QOO 524A - 7
17120-39JOO-OOO 181A - 3 3571 0-39JOO-QOO 339A - 1 44421-39JOO-QOO 421A - 5
26213-39JOO-OOO 240A - 3 48221-39JOO-QOO 435A - 5 53111-39JOO-YD8 460A - 1-1
 PART NO. [Link].-REFNO. PART NO. [Link].-REFNO. PART NO. [Link].-REFNO.

92111-39JOO-OOO 440A 6
9217Q-39JOO-OOO 7
1-5 92178-39J1 ()-{)()()
3 92211-39JOO-OOO
5411Q-39J1Q-13L 53:>A ..
5421 Q-39J00-13L 53:>A .. 11 92214-33G50-000 456A - 6
54267-33GOO-OOO 53:>A .. 22 60000 92223-33GOO-OOO 456A - 7
5441 Q-33G30-000 53)A - 12 94990-28G1Q-OOO 456A - 17
54424-28GOO-OOO 530A - 18 96412-33G6Q-OOO 456A - 14
550A - 5 621 545A - 96414-33G6Q-OOO 456A - 15
54441-39JOO-OOO 53:>A .. 24 63111-39JOO-OOO 474A - 1 96511-39JOO-OOO 456A - 11
54443-33GOO-OOO 530A - 21 63112-39JOO-OOO 474A 4 96513-23JOO-OOO 456A - 12
54451-28G2Q-OOO 53:>A - 13 63113-39JOO-OOO 474A 10 96513-23J1 Q-000 456A - 13
53)A - 15 63191-25COO-OOO 420A 4 99011-39J5Q-74A 496A - 4
54621 16 6321 Q-39JOO-OOO 474A - 6
54632-22JOO-OQO 53)A - 17 63411-39JOO-OOO 474A - 7
54711-11FOO-OOO 53)A - 7 6411Q-39J1Q-13L 550A - 1
5474Q-23JOO-OOO 53:>A .. 9 64147-33G1Q-OOO 407A - 11
54841-23JOO-OOO 53)A - 8 53)A - 3
5511 Q-39JOO-OOO 53:>A 25 550A - 3
550A 12 64400-33G2Q-OOO 550A - 4
5531 Q-39J1 Q-13L 53:>A 2 64441-{)9J2Q-OOO 550A - 6
550A 2 64451-{)9J1 ()-{)()() 550A - 7
5611 Q-39JOO-OOO 462A 1 64723-39JOO-OOO 550A - 10
56311-39JOO-YD8 463A - 1-1 - 7
56311-39JOO-YPA 463A - 1-2 68131-33G90-17U 445A - 6-2
56311-39JOO-YSF 463A - 1-3 68131-33G90-YD8 445A - 6-1
56311-39JOO-YVB 463A - 1-4 68135-39JOO-AX9 445A - 4-4
56311-39JOO-YVZ 463A - 1-5 68135-39JOO-AYH 445A - 4-1
56321-39JOO-OOO 463A - 2 68135-39JOO-AYJ 445A - 4-2
56500-39JOO-OOO 462A - 5 68135-39JOO-AYK 445A - 4-3
56533-33G6Q-OOO 462A - 6 68135-39JOO-AYL 445A - 4-5
- 8 68136-39JOO-OOO 445A - 17
5660Q-39JOO-OQO 462A - 7 68145-39JOO-AX9 445A - 5-4
57100-33G51-000 467A - 2 68145-39JOO-AYH 445A - 5-1
5711Q-33G51-000 467A - 1 68145-39JOO-AYJ 445A 5-2
5721l-33G51-000 467A - 12 68145-39JOO-AYK 445A 5-3
57300-39JOO-OOO 467A - 5 68145-39JOO-AYL 445A 5-5
57311-39JOO-OOO 467A - 6 6831
57421-39JOO-OOO 467A - 7 68332-39JOO-OOO 496A 3
57431-39JOO-OOO 467A - 8 68.641-39J00-17U 435A 8-2
16 68641-39JOQ-YD8 435A - 8-1
57500-39JOO-OOO 467A - 13 68645-39JOO-AYM 435A - 6-4
57511-39JOQ-OOO 467A - 14 68645-39JOO-AYN 435A - 6-1
5752Q-39J1 ()-{)()() 467A - 19 68645-39JOO-AYP 435A - 6-2
57523-33G50-000 467A 2) 68645-39JOO-AYQ 435A - 6-3
575,24-33G50-000 467A 21 68645-39JOO-AYR 435A - 6-5
57621-39JOO-OQO 467A 15 68911-39JOO-OOO 496A - 2
5811
58300-39JOO-OOO 462A - 12
5841 Q-39JOO-OOO 462A - 14
5851 Q-39JOO-OOO 462A - 15 90000
~62-Q9JOO-OOQ. 462A - 16
58575-39JOO-OOO 462A - 19
 SUZUKI URllO, PART CATALOGUE
1ST EDITION
Published in March 2014

© 2014 Suzuki Motor Corporation. All rights reserved.

No part of this document may be reproduced or transmitted in any form or by any means, electronic or
mechanical, for any purpose, without the express written permission of Suzuki Motor Corporation.

SUZUKI MOTORCYCLE INDIA LIMITED,

Spare Parts Department
Village Kherki Dhaula, Badshahapur,N.H.-8,
Link Road, Gurgaon 12004 (HARYANA)

Reprint Prohibited @
 INFORMATION
ILLUSTRATION INDEX

ENGINE
TRANSMISSION

ELECTRICAL

BODY

PARTS NUMBER INDEX

 SUZUKI MOTORCYCLE INDIA LTD.

"9!100BF39JPOCOOO*

9900BF39JPOCOOO
@
Printed in India
